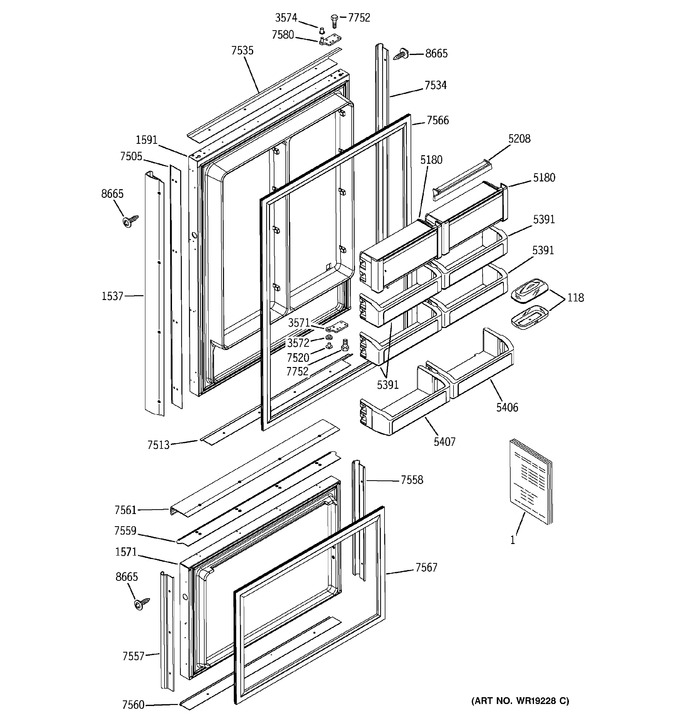

1 - Doors
2 - Controls & Components
3 - Freezer Section, Trim & Components
4 - Shelves & Drawers
5 - Sealed System & Mother Board
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-60468 | Pm Install Instruction |
|
- | |||||
| 1 | 49-60423 | Owners Manual Bm |
|
- | |||||
| 1 | 31-46173-1 | Pm Instruct Install Bm |
|
- | |||||
| 1 | 31-51767-2 | Pm Mini Manual |
|
- | |||||
| 118 | WR19X35 | Dish Butter Asm |
|
- | |||||
| 1537 | WR12X10644 | Handle Ff |
|
- | |||||
| 1571 | WR78X10889 | Btm Mt Fz Foamed Dr |
|
- | |||||
| 1591 | WG03L11017 | Door Complete Bm Service (Replaces: WR78X12201) |
|
$ 2,052.09 | |||||
| 3571 | WR13X10657 | Hinge Door Btm |
|
- | |||||
| 3572 | WG03A00011 | Bushing Hinge Bottom (Replaces: WR02X10953) |
|
$ 73.58 | |||||
| 3574 | WG03A00012 | Bushing Hinge Top (Replaces: WR02X10954) |
|
$ 49.33 | |||||
| 5180 | WR71X10142 | Asm Dairy Comp |
|
- | |||||
| 5208 | WR22X10007 | Seal Dairy Asm |
|
- | |||||
| 5391 | WG02L00043 | Bin, Ff Door W/window (Replaces: WR71X10138) |
|
$ 105.03 | |||||
| 5406 | WR01L08881 | Bin, Door Ff Deep Rh (Replaces: WR71X10139) |
|
$ 94.48 | |||||
| 5407 | WG03L00003 | Bin, Door Ff Deep Lh (Replaces: WR71X10140) |
|
$ 107.67 | |||||
| 7505 | WR12X10641 | Ff Door Handle Trim |
|
- | |||||
| 7513 | WR17X11560 | Ff Door Btm- Rh Hinge |
|
- | |||||
| 7520 | WR01X10257 | Pin Btm. Lower Hinge |
|
- | |||||
| 7534 | WR17X11558 | Ff Door Trim Rh Hinge |
|
- | |||||
| 7535 | WR17X11559 | Ff Door Trim Top- Rh Hin |
|
- | |||||
| 7557 | WR17X11553 | Fz Door Trim Rh Bm |
|
- | |||||
| 7558 | WR17X11554 | Fz Door Trim Lh |
|
- | |||||
| 7559 | WR12X10642 | Fz Door Handle |
|
- | |||||
| 7560 | WR17X11556 | Fz Door Trim Bottom |
|
- | |||||
| 7561 | WR12X10643 | Fz Door Handle |
|
- | |||||
| 7566 | WG03L00728 | Gasket Door (Replaces: WR24X10207) |
|
$ 175.21 | |||||
| 7567 | WG03L00113 | Gasket Fz Door Bm (Replaces: WR24X10148) |
|
Immediately | $ 168.52 | ||||
| 7580 | WR13X10210 | Hinge Asm Door Top |
|
- | |||||
| 7752 | WG03A00052 | Screw 12-24 .7 Wh (Replaces: WR1X2138) |
|
$ 4.20 | |||||
| 8665 | WR01X10303 | Handle Trim Screw |
|
- |
