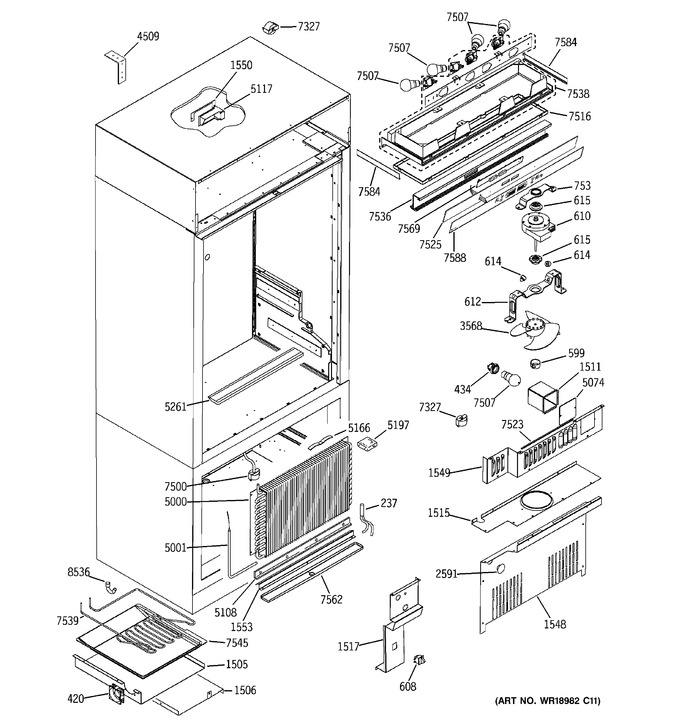

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 237 | WR55X10028 | Sensor Temp Ff |
|
- | |||||
| 420 | WR60X10225 | Fan Fresh Food |
|
- | |||||
| 434 | WR02X11626 | Light Socket #3407b |
|
- | |||||
| 599 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 608 | WR01L07654 | Switch Light Fz (Replaces: WR23X427) |
|
$ 30.18 | |||||
| 610 | WR01F01622 | Motor Evap Dc (Replaces: WR60X10185) |
|
Immediately | $ 69.95 | ||||
| 612 | WR02X10653 | Bracket Orifice Fan |
|
- | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 615 | WR02X10519 | Grommet Evap Fan |
|
- | |||||
| 1505 | WR17X12685 | Pan Protector |
|
- | |||||
| 1511 | WR74X10085 | Bracket Light Housing Mt |
|
- | |||||
| 1515 | WR74X10292 | Orifice Evap |
|
- | |||||
| 1517 | WR74X10235 | Fill Tube Cover Bm |
|
- | |||||
| 1548 | WR74X10293 | Cover Evap |
|
- | |||||
| 1549 | WR74X10287 | Cover Evap Fan |
|
- | |||||
| 1550 | WR17X11009 | Bracket Damper Mtg |
|
- | |||||
| 1553 | WR17X12380 | Catch Trough Evap |
|
- | |||||
| 2591 | WR02X10154 | Plug Button #413 I/m |
|
- | |||||
| 3568 | WR60X10050 | Blade Fan Motor |
|
- | |||||
| 4509 | WR01X10825 | Bracket Anti-tip |
|
- | |||||
| 5000 | WR85X10118 | Evaporator Bm |
|
- | |||||
| 5001 | WR51X10015 | Defrost Heater 36bm |
|
- | |||||
| 5074 | WR17X10347 | Light Shield Fz |
|
- | |||||
| 5108 | WR17X10349 | Drain Baffle |
|
- | |||||
| 5117 | WR09X10065 | Damper Motorized |
|
- | |||||
| 5166 | WR01X10045 | Wire Retainer Evap Heate |
|
- | |||||
| 5197 | WR02X10145 | Baffle Evap Lh |
|
- | |||||
| 5261 | WR49X10015 | Mullion Block Kit Btm.mt |
|
- | |||||
| 7327 | WR50X10045 | Thermodisc, Defrost Ff |
|
- | |||||
| 7500 | WR50X10087 | Bm Evap T.o.d |
|
- | |||||
| 7507 | 40A15 | Lamp 40 W |
|
Immediately | $ 1.98 | ||||
| 7516 | WR17X11014 | Light Shield Ff |
|
- | |||||
| 7536 | WR74X10238 | Hmi Housing B/m |
|
- | |||||
| 7538 | WR17X13036 | Ps Bm Ff Light Housing |
|
- | |||||
| 7539 | WR84X10083 | Condenser Btm Bm T&w |
|
- | |||||
| 7545 | WR17X11016 | Drain Pan |
|
- | |||||
| 7562 | WR17X11098 | Evaporator Trough |
|
- | |||||
| 7569 | WR55X10918 | Hmi Control Asm |
|
- | |||||
| 7584 | WR38X10255 | Gasket Ff Light Trim |
|
- | |||||
| 7588 | WR55X10714 | Membrane Temp Ctrl Bm |
|
- | |||||
| 8536 | WR17X10355 | Drain Tube Trap |
|
- |
