SELECT A DIAGRAM

1 - Doors


2 - Controls & Components


3 - Freezer Section, Trim & Components


4 - Shelves & Drawers


5 - Sealed System & Mother Board

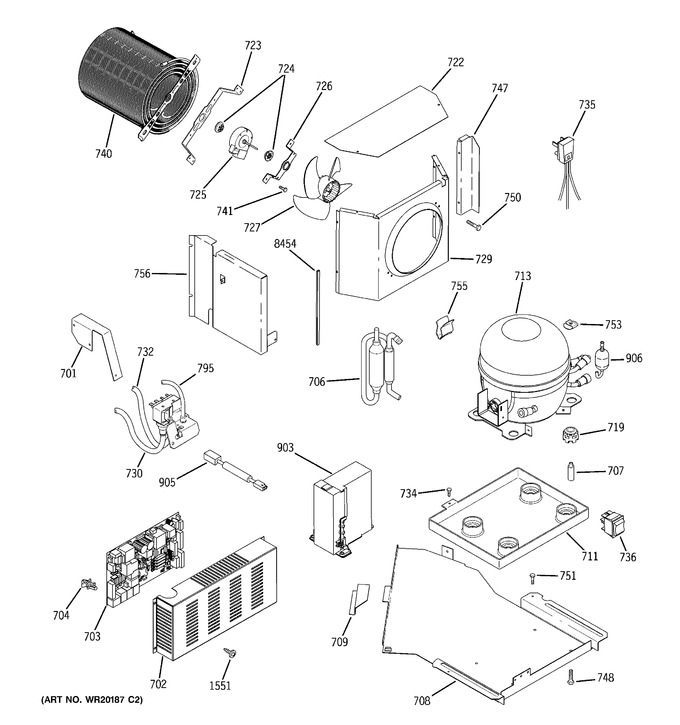

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
701	WR02X12482		Bracket Water Filter Mtg		Appelez-nous	-
702	WR02X12570		Cover Motherboard		Appelez-nous	-
703	WR01F02880		Board Asm Main Control   (Replaces: WR55X11070)			Immediately	$ 329.91
704	WR01X10301		Main Board Stand Offs		Appelez-nous	-
706	WR74X10125		Dryer Bifurcated Xh9		Appelez-nous	-
707	WR1X1779		Stud Mtg Compr		Appelez-nous	-
708	WR17X12348		System Pan		Appelez-nous	-
709	WR02X12569		System Pan Bracket		Appelez-nous	-
713	WR60X10216		Motor Dc Cond Fan		Appelez-nous	-
719	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
723	WG03F00071		Bracket Cond Fan (mtg)   (Replaces: WR02X11863)			Immediately	$ 27.00
724	WR01A00315		Grommet Cond Fan   (Replaces: WR02X10520)				$ 4.17
725	WG03F00154		Compressor Vcc3 Repl. Ki   (Replaces: WR87X10111)				$ 1,117.00
726	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
727	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10206)				$ 11.51
729	WR17X11252		Shroud Condenser		Appelez-nous	-
735	WG03F00911		Power Cord Asm   (Replaces: WR23X10300)				$ 85.41
736	WR23X10571		Master Light Switch		Appelez-nous	-
740	WR84X10092		Cond & Brkt Formed Asmff		Appelez-nous	-
747	WR17X10694		Baffle Cond Air		Appelez-nous	-
750	WR1X1826		#8-18 Type Ab X 3/8 Ph P		Appelez-nous	-
756	WR17X12352		Baffle Asm		Appelez-nous	-
795	WR57X10075		Valve Water Asm		Appelez-nous	-
903	WR55X10685		Inverter Asm Comp Mount		Appelez-nous	-
905	WR23X10605		Harness Communication		Appelez-nous	-
1551	WG04A01239		#10x1 Ph Sms   (Replaces: WD2X295)				$ 3.97
8454	WR38X10190		Edge Trim 1.1257"		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
