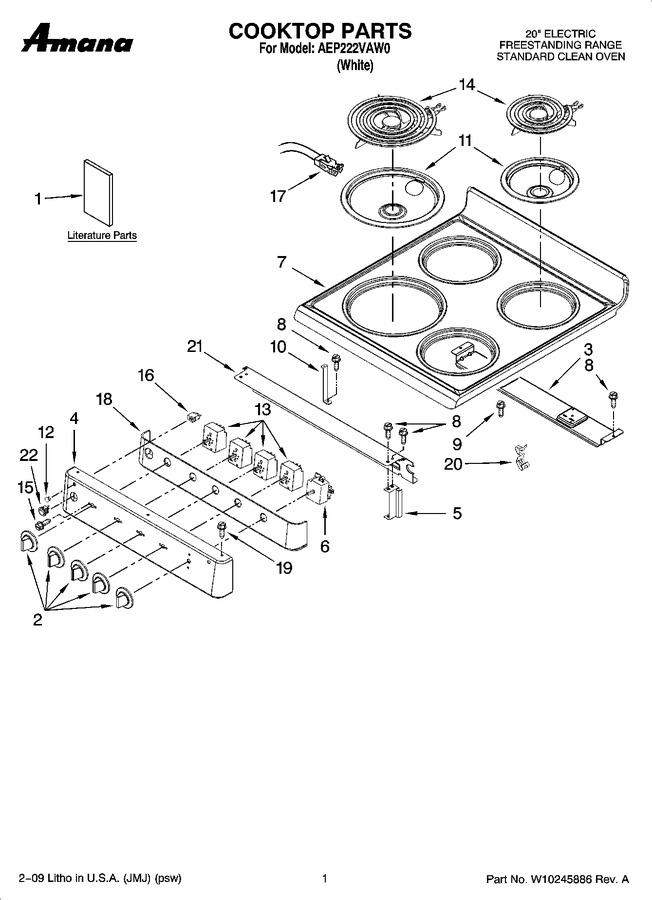

01 - Cooktop Parts


02 - Oven Door And Drawer Parts


03 - Chassis Parts


04 - Backguard Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175654		Installation Instructions		Appelez-nous	-
1	W10181003		Tech Sheet		Appelez-nous	-
1	98007130		Safer Cooking Tips		Appelez-nous	-
1	98015589		Template, Anti-tip		Appelez-nous	-
1	W10181328		Use & Care Guide		Appelez-nous	-
2	WPW10183393		Knob, Control (5)   (Replaces: W10183393)				$ 21.74
3	W10168363		Support, Burner		Appelez-nous	-
4	W10187996		Panel, Manifold		Appelez-nous	-
5	W10206396		Bracket, Support		Appelez-nous	-
6	WP74009277		Thermostat   (Replaces: W10179656)				$ 335.61
7	W10175582		Cooktop		Appelez-nous	-
8	W10837731		Screw (2)   (Replaces: 98006633)				$ 8.30
9	98005578		Screw (5)		Appelez-nous	-
10	W10161199		Bracket, Cooktop		Appelez-nous	-
11	WPW10196405		Bowl, Chrome (8`` (1))   (Replaces: W10179653)			Immediately	$ 17.29
11	WPW10196406		Bowl, Chrome (6`` (3))   (Replaces: W10179650)			Immediately	$ 13.39
12	W11690131		Indicator, Lens   (Replaces: W10179657)				$ 7.85
13	WPW10179654		Switch, Infinite (left Front)   (Replaces: W10179654)				$ 168.53
13	WP74002328		Switch, Infinite (lr, Rf & Rr)   (Replaces: W10179655)				$ 168.07
14	WPW10345407		Element, Surface (6`` (3))   (Replaces: W10179644)			Immediately	$ 165.42
14	WP9761346		Element, Surface (8`` (1))   (Replaces: W10179646)			Immediately	$ 104.62
15	WP3400882		Screw (10)   (Replaces: 98005663)			Immediately	$ 7.55
16	W10852510		Indicator, Light   (Replaces: W10185551)				$ 123.80
17	814399		Receptacle, Elmnt			Immediately	$ 43.19
18	W11688742		Foil, Panel   (Replaces: W10190578)		Appelez-nous	-
19	W11233072		Screw (4)   (Replaces: 98005000)			Immediately	$ 14.72
20	98005642		Clip, Therm Bulb			Immediately	$ 87.08
21	W10159818		Shield, Control		Appelez-nous	-
22	98011571		Switch, Light		Appelez-nous	-
