SELECT A DIAGRAM

01 - Cooktop Parts


02 - Oven Door And Drawer Parts


03 - Chassis Parts

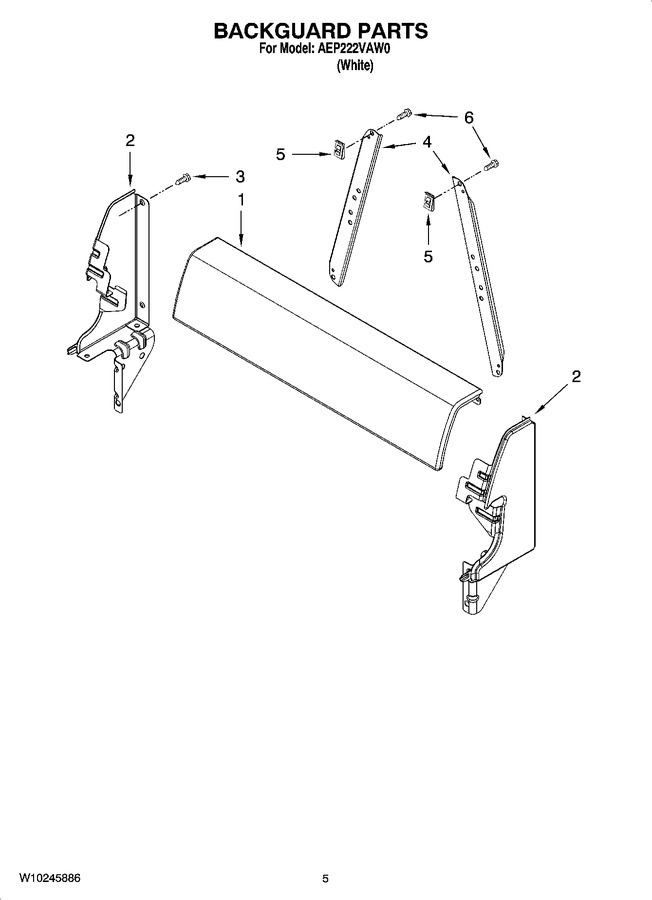

04 - Backguard Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98009821		Trim, Top		Appelez-nous	-
2	W10144828		Endcap (left)		Appelez-nous	-
2	W10144829		Endcap (right)		Appelez-nous	-
3	WP3400805		Screw (4)   (Replaces: 98015526)				$ 7.55
4	W10145101		Support, Backguard		Appelez-nous	-
5	98009179		U-nut				$ 14.03
6	W10837731		Screw   (Replaces: 98006633)				$ 8.30
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
NI	98012220		Kit, Door Pin Removal				$ 10.38
NI	WPW10477747		Anti-tip Kit   (Replaces: 98017833)				$ 22.88
NI	W10177729		Harness, Wire (surface To Panel Assembly)		Appelez-nous	-
NI	W10180175		Harness, Wire (oven Light Switch)		Appelez-nous	-
NI	3184020		Harness, Wire (ground)   (Replaces: 6610473)				$ 86.92
NI	W10177713		Wire, Infinite To Term Block L1 (black)		Appelez-nous	-
NI	W10177714		Wire, Infinite To Term Block L2 (red)		Appelez-nous	-
NI	W10177715		Wire, Term Block To Thermostat L1 (black)		Appelez-nous	-
NI	W10177716		Wire, Thermostat To Bake Element (blue)		Appelez-nous	-
NI	W10177718		Wire, Thermostat Br Bake Element (yellow)		Appelez-nous	-
NI	W10177719		Wire, Tstat (4) To Tstat (2) (black)		Appelez-nous	-
NI	W10177720		Wire, Infinite To Indicator Light (black)		Appelez-nous	-
NI	W10177722		Wire, Tstat (h) To Oven Indicator Light (black)		Appelez-nous	-
NI	W10177724		Wire, Infinite(l2) To Surface Indicator Light To Oven (red)		Appelez-nous	-
NI	W10177726		Wire, Broiler Element To Thermostat (6) To Bk (red)		Appelez-nous	-
NI	W10177728		Wire, Term Block To Tstat 5 (red)		Appelez-nous	-
NI	W10850756		Screw, Ground   (Replaces: 8534079)				$ 8.20
NI	WP3391018		Cable, Tie   (Replaces: 3391018)				$ 33.43
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
NI	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
NI	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
NI	511873		Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.)				$ 51.75
NI	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
NI	350942		Paint, Pressurized Spray (12 Oz.) (primer) (white)   (Replaces: 206922)				$ 94.14

    View Diagram in Separate Window       Print Part List
