SELECT A DIAGRAM

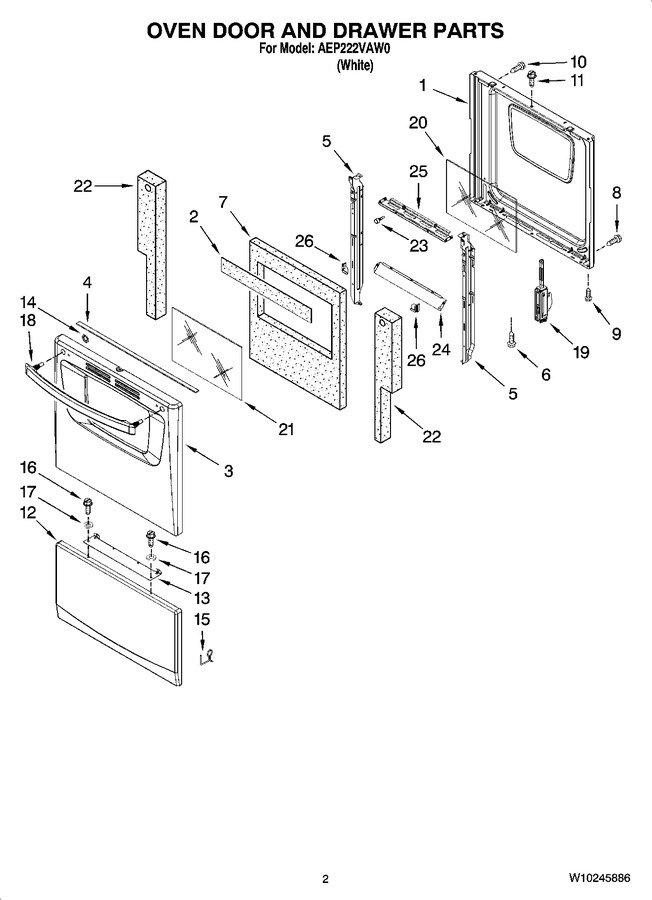

01 - Cooktop Parts


02 - Oven Door And Drawer Parts


03 - Chassis Parts


04 - Backguard Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98010413		Liner, Door		Appelez-nous	-
2	98006716		Retainer, Insulation (7)		Appelez-nous	-
3	W10223098		Panel, Oven Door   (Replaces: 98009515)		Appelez-nous	-
4	W10198647		Seal, Oven Door		Appelez-nous	-
5	98004629		Retainer (left)		Appelez-nous	-
5	98004564		Retainer (right)		Appelez-nous	-
6	WP59002061		Screw   (Replaces: 98004993)				$ 8.18
7	W11688807		Insulation, Door   (Replaces: W10137237)		Appelez-nous	-
8	W11206744		Screw   (Replaces: 98008699)				$ 14.23
9	WP3400805		Screw   (Replaces: 98004219)				$ 7.55
10	WP8533842		Screw   (Replaces: 8533842)				$ 7.30
11	3196166		Screw   (Replaces: 98006727)				$ 7.36
12	98009307		Door, Broil		Appelez-nous	-
13	W10208117		Bracket, Panel		Appelez-nous	-
14	WP98004650		Nut, Push   (Replaces: 98004650)				$ 7.30
15	6610364		Clip, Door				$ 11.83
16	W10837731		Screw   (Replaces: 98006633)				$ 8.30
17	W10216805		Washer (2)		Appelez-nous	-
18	WP98004947		Handle, Oven Door   (Replaces: 98004947)				$ 148.80
19	98017873		Hinge, Oven Door				$ 39.94
20	WPW10201296		Glass, Inner   (Replaces: W10201296)				$ 50.88
21	WPW10168624		Glass, Outer   (Replaces: W10168624)				$ 74.73
22	W10110944		Insulation (right)				$ 60.17
22	W11688816		Insulation (left)   (Replaces: W10110943)				$ 25.84
23	98004723		Bumper   (Replaces: 98004979)		Appelez-nous	-
24	98012903		Insul., Retainer (bottom)		Appelez-nous	-
25	98004981		Insul., Retainer (top)		Appelez-nous	-
26	98004953		Clip, Glass (retainer, Rh)		Appelez-nous	-
26	98004952		Clip, Glass (retainer, Lh)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
