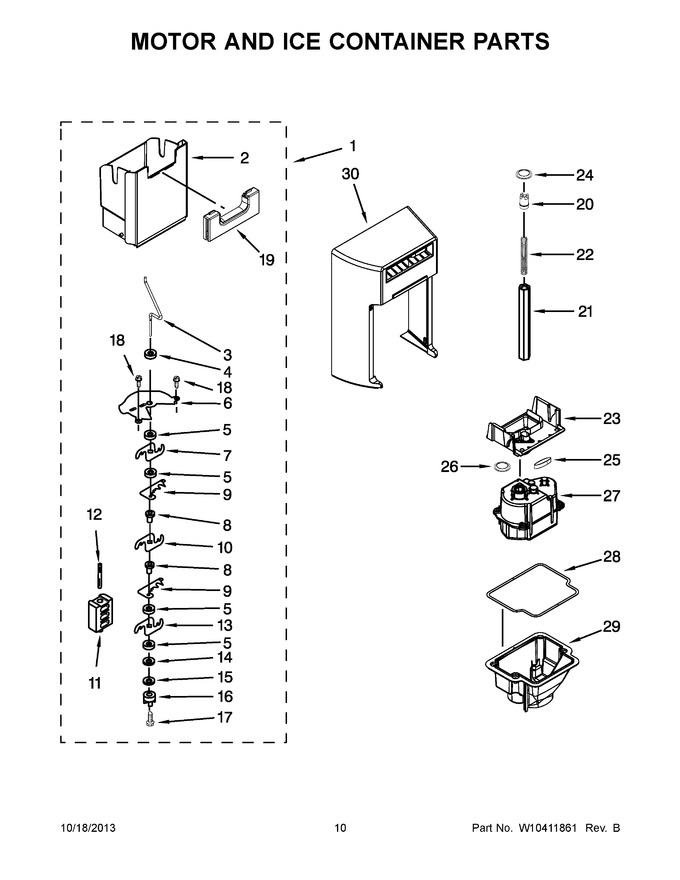

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11347840 | Assembly, Ice Bin (Replaces: W10258516) |
|
Immediately | $ 326.62 | ||||
| 2 | W10286610 | Bin, Ice |
|
$ 81.68 | |||||
| 3 | W10178230 | Auger, Crusher |
|
- | |||||
| 4 | 2258220 | Washer, Auger |
|
$ 8.02 | |||||
| 5 | W11032812 | Spacer, Step (Replaces: W10138200) |
|
- | |||||
| 6 | W10178232 | Cover, Crusher |
|
$ 27.60 | |||||
| 7 | W10278731 | Blade, Rotary A |
|
$ 81.78 | |||||
| 8 | W11032808 | Spacer, Step (Replaces: W10138201) |
|
$ 9.57 | |||||
| 9 | 2257020 | Blade, Fixed |
|
$ 59.91 | |||||
| 10 | W10278732 | Blade, Rotary B |
|
$ 81.90 | |||||
| 11 | W10178238 | Block, Blade |
|
$ 10.31 | |||||
| 12 | W10166878 | Pin, Roll |
|
$ 10.98 | |||||
| 13 | W10278733 | Blade, Rotary C |
|
$ 81.90 | |||||
| 14 | 489235 | Washer |
|
$ 8.05 | |||||
| 15 | WP2198661 | Washer, Top Coupling (Replaces: 2198661) |
|
$ 10.31 | |||||
| 16 | WP2220457 | Coupling, Top (Replaces: 2220457) |
|
Immediately | $ 32.33 | ||||
| 17 | WP8281164 | Screw (stainless) (Replaces: 8281164) |
|
$ 10.20 | |||||
| 18 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 19 | W11652042 | Assembly, Latch (Replaces: W10258552) |
|
Immediately | $ 22.48 | ||||
| 20 | WP2220458 | Coupling, Bottom (Replaces: 2220458) |
|
Immediately | $ 36.94 | ||||
| 21 | WPW10258544 | Shaft, Drive (Replaces: W10258544) |
|
Immediately | $ 23.87 | ||||
| 22 | W10852956 | Spring, Coupling (Replaces: 2198607) |
|
Immediately | $ 19.26 | ||||
| 23 | W11573761 | Assembly, Mounting Plate (Replaces: W10293211) |
|
Immediately | $ 56.63 | ||||
| 24 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.31 | ||||
| 25 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 24.91 | |||||
| 26 | WP2212370 | Washer (Replaces: 2212370) |
|
$ 22.82 | |||||
| 27 | WP2323603 | Motor, Dispenser (Replaces: 2323603) |
|
Immediately | $ 338.87 | ||||
| 28 | W10166854 | Gasket |
|
$ 24.02 | |||||
| 29 | W11678273 | Assembly, Motor Box (Replaces: W10238131) |
|
Immediately | $ 69.32 | ||||
| 30 | WPW10287594 | Cover, Container (Replaces: W10287594) |
|
$ 206.27 | |||||
| 100 | W11347840 | Assembly, Ice Bin (Replaces: W10258516) |
|
Immediately | $ 326.62 |
