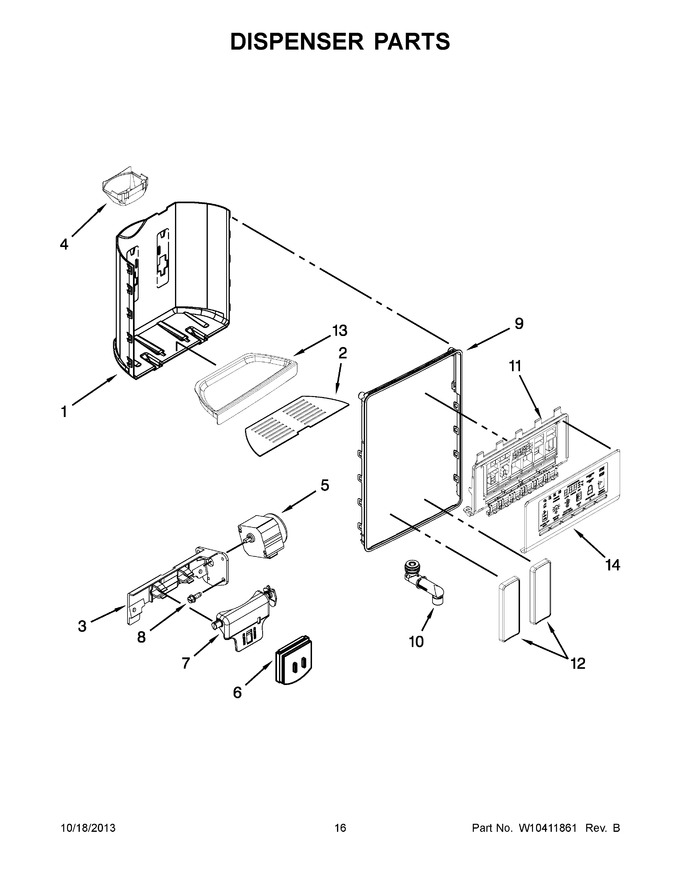

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10276209 | Grate, Drip Tray (Replaces: W10276209) |
|
$ 73.40 | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 68.78 | |||||
| 4 | W10499850 | Guide, Ice (Replaces: W10174808) |
|
$ 94.20 | |||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 93.71 | |||||
| 6 | W10346235 | Door, Ice (Replaces: W10174811) |
|
$ 153.29 | |||||
| 7 | W10499850 | Support, Ice Door (Replaces: W10174809) |
|
$ 94.20 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.18 | |||||
| 9 | W10448931 | Ring, Trim (chromium Frost) (Replaces: W10254252) |
|
- | |||||
| 10 | WP2305235 | Assembly, Spigot (Replaces: 2305235) |
|
Immediately | $ 132.36 | ||||
| 11 | WPW10372210 | Assembly, Electronic Control (Replaces: W10254278) |
|
$ 275.25 | |||||
| 12 | WPW10370594 | Pad, Ice And Water (midnight Grey) (Replaces: W10290362) |
|
$ 279.55 | |||||
| 13 | W10276225 | Tray, Drip (satina) |
|
$ 66.65 | |||||
| 14 | W10254266 | Cover, Front (silver) |
|
$ 121.64 |
