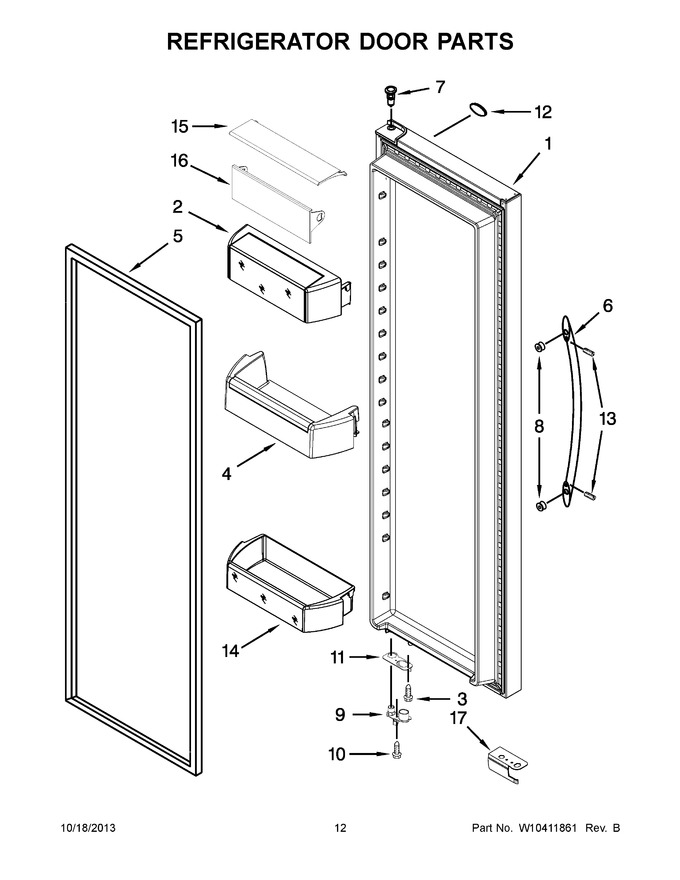

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10365609		Door, Refrigerator (includes Item 5) (stainless)		Appelez-nous	-
2	W10336573		Assembly, Door Compartment		Appelez-nous	-
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
4	W10335221		Bin, Shallow Door				$ 35.30
5	W10355582		Gasket, Door (grey)   (Replaces: W10249916)				$ 307.13
6	WPW10670421		Handle (stainless)   (Replaces: W10274730)				$ 228.74
7	WP2182181		Thimble   (Replaces: 2200087)				$ 7.34
8	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.69
9	WPW10257203		Door Closer, Upper Cam(grey)   (Replaces: W10257203)				$ 11.66
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
11	W11037957		Bracket, Door Stop   (Replaces: W10247909)				$ 72.22
12	2220214		Nameplate, Whirlpool Gold				$ 32.43
13	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 16.59
14	WPW10335220		Bin, Gallon Door   (Replaces: W10335219)				$ 84.23
15	WPW10316883		Lid, Utility Bin   (Replaces: W10316883)				$ 60.90
16	W10336570		Window, Door Compartment				$ 30.07
17	W11661847		Cover, Door Stop (grey)   (Replaces: W10257218)			Immediately	$ 28.54
