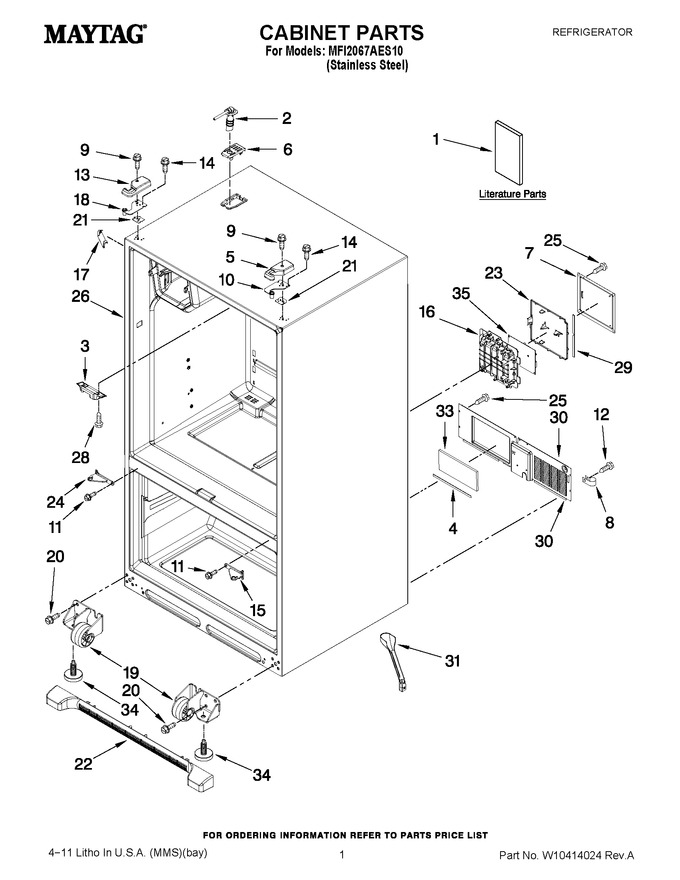

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10410713 | Tech Sheet |
|
- | |||||
| 1 | W10215640 | Guide, Energy |
|
- | |||||
| 1 | W10329372 | Use & Care Guide |
|
- | |||||
| 2 | W11415785 | Tube W/waterline, Fill-im (Replaces: 12961401) |
|
Immediately | $ 62.39 | ||||
| 3 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 4 | B5759655 | Gasket, Mc Back |
|
$ 12.41 | |||||
| 5 | WP67005956 | Cover, Top Hinge (right) (black) (Replaces: 12962302B) |
|
$ 21.47 | |||||
| 6 | 12981401B | Cover, Fill Tube (black) |
|
$ 12.62 | |||||
| 7 | 12961602 | Cover-control Box |
|
$ 110.66 | |||||
| 8 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 9 | WP8281196 | Screw, Hinge Cover (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | W11592374 | Hinge, Top Right (Replaces: 12963205ED) |
|
Immediately | $ 29.02 | ||||
| 11 | W11573362 | Screw, Center Hinge (Replaces: 12992201) |
|
$ 14.02 | |||||
| 12 | 67006425 | Screw (3) (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 13 | W10337647 | Cover, Top Hinge (left) (black) (Replaces: 12962301B) |
|
Immediately | $ 22.22 | ||||
| 14 | WP489349 | Screw, Top Hinge (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10918164 | Hinge, Center (rt) (black) (Replaces: 13000008ED) |
|
$ 86.64 | |||||
| 16 | WP67006390 | Box, Hv Control (Replaces: 12957601) |
|
$ 204.37 | |||||
| 17 | 67003485 | Cover, Corner (2) (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 18 | W11592375 | Hinge, Top Left (Replaces: 12963204ED) |
|
$ 29.09 | |||||
| 19 | W11820444 | Roller Assy. (front) (left) (Replaces: W10275850) |
|
Immediately | $ 35.57 | ||||
| 19 | W11820445 | Roller Assy. (front) (right) (Replaces: W10275849) |
|
Immediately | $ 35.57 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | 12999502 | Shim, Top Hinge (right) |
|
$ 95.81 | |||||
| 21 | 12999501 | Shim, Top Hinge (left) |
|
$ 94.79 | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561) |
|
$ 147.21 | |||||
| 23 | W10296536 | Lid, Hv Control |
|
$ 94.63 | |||||
| 24 | W10918164 | Hinge, Center (lt) (black) (Replaces: 13000007ED) |
|
$ 86.64 | |||||
| 25 | W11686675 | Screw, Cover (Replaces: 12990702) |
|
$ 13.59 | |||||
| 26 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 28 | W10854958 | Screw, Block (Replaces: 12990302) |
|
$ 7.43 | |||||
| 29 | 12957801 | Gasket, Hv Control |
|
- | |||||
| 30 | WPW10270394 | Cover, Mc Back (Replaces: W10270394) |
|
$ 198.79 | |||||
| 31 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 33 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 35 | WPW10312695 | Board, Hv Control (Replaces: W10312695) |
|
Immediately | $ 234.65 |
