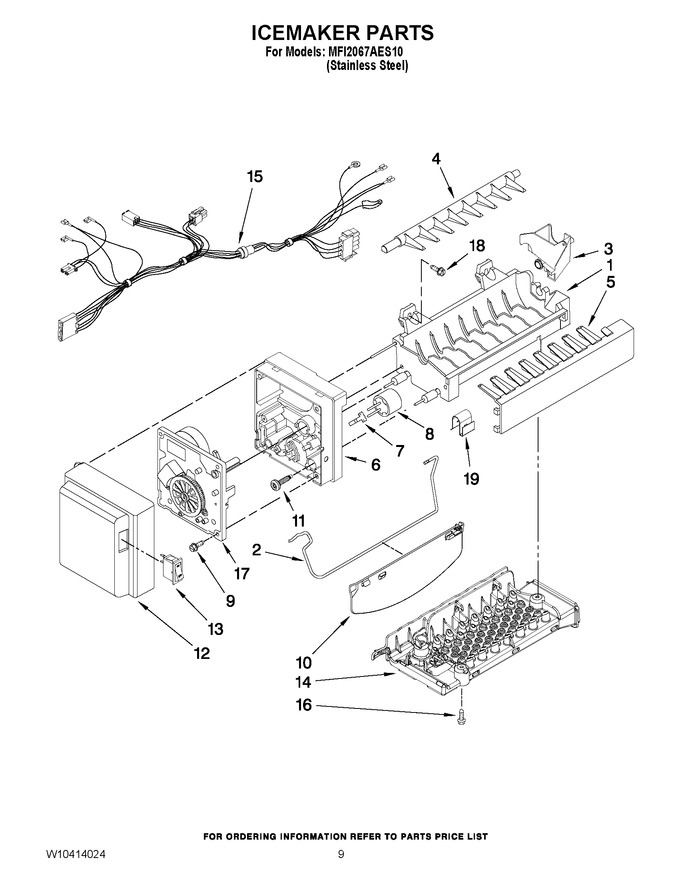

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10300025 | Mold & Heater Assembly (also Order 542638 Grease) (Replaces: W10300025) |
|
Immediately | $ 192.30 | ||||
| 2 | WPW10175514 | Arm, Shutoff (Replaces: W10175514) |
|
Immediately | $ 91.26 | ||||
| 3 | W10327050 | Cup, Fill |
|
$ 85.89 | |||||
| 4 | W10318914 | Ejector |
|
$ 36.27 | |||||
| 5 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 94.69 | |||||
| 6 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 104.57 | |||||
| 7 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 8 | WP627985 | Thermostat (also Order 542369 Cement) (Replaces: W10290336) |
|
$ 109.18 | |||||
| 9 | W10001240 | Screw (3) |
|
$ 8.78 | |||||
| 10 | WPW10121440 | Extension, Shutoff Arm (Replaces: W10121440) |
|
$ 89.40 | |||||
| 11 | 8533917 | Screw (2) |
|
$ 13.37 | |||||
| 12 | WPW10121444 | Cover (Replaces: W10121444) |
|
$ 91.95 | |||||
| 13 | WP2313326 | Switch, On-off (Replaces: 2313326) |
|
Immediately | $ 18.45 | ||||
| 14 | WPW10312691 | Impinger Assy. (Replaces: W10312691) |
|
$ 349.21 | |||||
| 15 | W10312698 | Harness, Icemaker |
|
$ 235.55 | |||||
| 16 | 67006425 | Screw, Impinger (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 17 | 8201515 | Module Assembly (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 18 | 489136 | Screw (3) |
|
$ 10.29 | |||||
| 19 | WP628379 | Clip (Replaces: 628379) |
|
$ 10.57 | |||||
| 100 | WPW10300024 | Icemaker Assembly (Replaces: W10300024) |
|
Immediately | $ 263.93 | ||||
| NI | 10244904SP | Coupling |
|
- |
