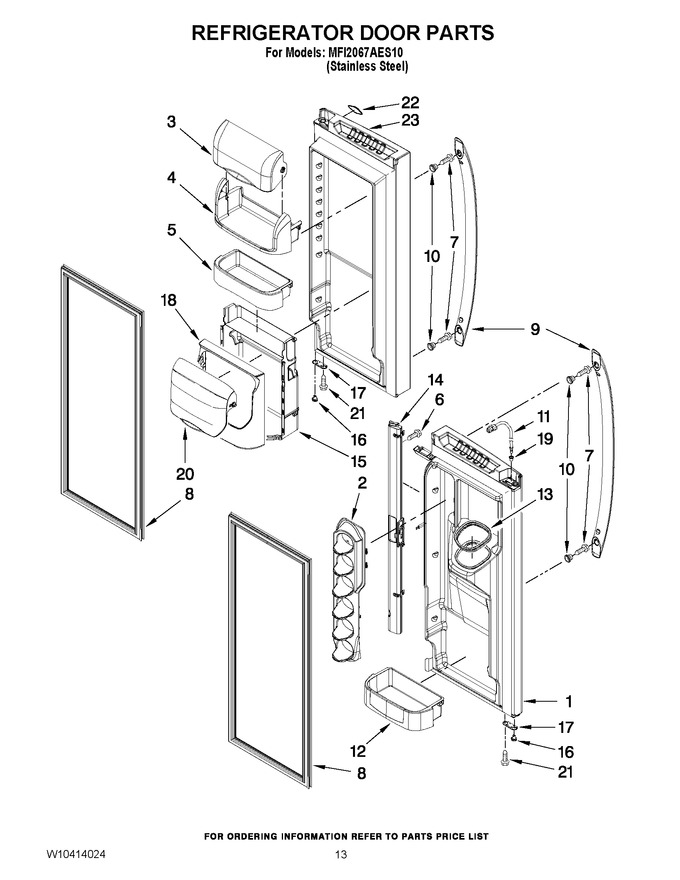

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107806S | Door, Left (stainless) |
|
- | |||||
| 2 | 12922301 | Dispenser-can |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WP67006313 | Bin, Shelf (chiller Top) (Replaces: 12945801SP) |
|
Immediately | $ 80.59 | ||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 7 | W10290759 | Screw, Handle |
|
$ 5.83 | |||||
| 8 | W11378944 | Gasket, Door (black) (Replaces: W10163898) |
|
Immediately | $ 187.59 | ||||
| 9 | W10291144 | Handle, Door (stainless) |
|
$ 105.40 | |||||
| 10 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 11.96 | ||||
| 11 | W10275942 | Waterline, Door |
|
Immediately | $ 114.54 | ||||
| 12 | 12840003K | Bin, Shelf (gallon) |
|
- | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 31.20 | ||||
| 14 | WPW10151713 | Mullion, Door (black) (Replaces: 12732503B) |
|
$ 325.79 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 12945601SP) |
|
$ 256.79 | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.05 | ||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 12945501SP) |
|
$ 256.79 | |||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 12945701SP) |
|
Immediately | $ 82.18 | ||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 22 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 67.14 | ||||
| 23 | 13107809S | Door, Right (black) |
|
- |
