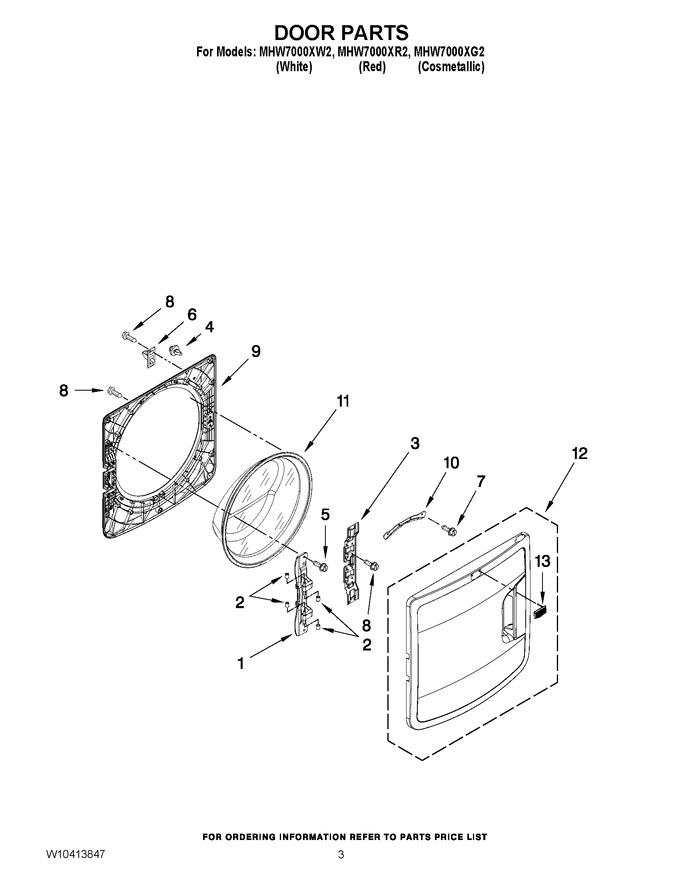

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10208415 | Hinge Base (Replaces: W10208415) |
|
Immediately | $ 117.42 | ||||
| 2 | WPW10208398 | Cap, Hinge (Replaces: W10208398) |
|
Immediately | $ 21.47 | ||||
| 3 | W10839743 | Plate, Hinge Retainer (Replaces: W10312805) |
|
$ 23.76 | |||||
| 4 | 8572266 | Bumper, Door |
|
Immediately | $ 11.73 | ||||
| 5 | W11661566 | Screw, 10-32 X 1/2 (Replaces: W10288126) |
|
$ 14.73 | |||||
| 6 | WPW10488048 | Strike, Door (Replaces: 8183198) |
|
Immediately | $ 8.28 | ||||
| 7 | W11230114 | Screw, M4.1-1.8 X 10 (Replaces: 8540513) |
|
$ 13.94 | |||||
| 8 | WP8534022 | Screw, 8-18 X 5/8 (Replaces: 8534022) |
|
$ 8.37 | |||||
| 9 | W11316776 | Frame, Door Back Support (Replaces: W10272396) |
|
Immediately | $ 183.94 | ||||
| 10 | W10295703 | Clamp, Glass (Replaces: W10003440) |
|
$ 19.85 | |||||
| 11 | W10208263 | Glass, Door |
|
$ 181.52 | |||||
| 12 | W10272401 | Door, Outer Assembly |
|
$ 250.27 | |||||
| 13 | W10732500 | Badge (Replaces: W10316087) |
|
$ 45.43 |
