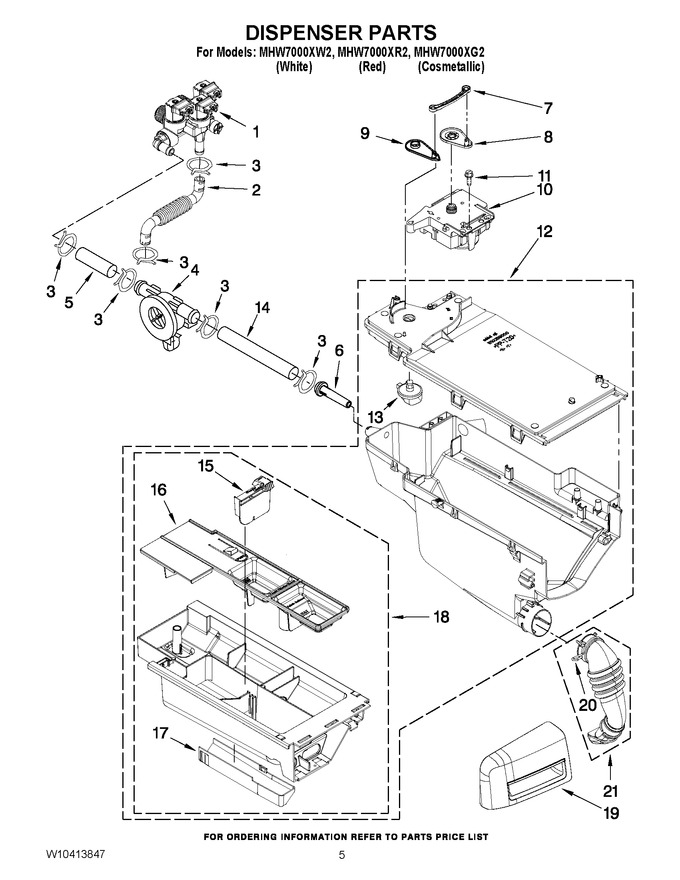

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10247306 | Valve, Inlet (Replaces: W10247306) |
|
Immediately | $ 167.78 | ||||
| 2 | W10239949 | Hose, Inlet Valve To Active Vent |
|
$ 43.27 | |||||
| 3 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.40 | ||||
| 4 | WPW10110225 | Flowmeter (Replaces: 8181696) |
|
Immediately | $ 109.03 | ||||
| 5 | W10538825 | Hose, Inlet Valve To Flowmeter (Replaces: W10239935) |
|
$ 25.83 | |||||
| 6 | WP8183181 | Nozzle, Inlet (Replaces: 8183181) |
|
$ 90.30 | |||||
| 7 | WP8183183 | Lever, Connection (Replaces: 8183183) |
|
$ 90.23 | |||||
| 8 | WP8183184 | Cam, Actuator (Replaces: W10003190) |
|
$ 90.23 | |||||
| 9 | W10183517 | Lever, Water Distribution |
|
$ 9.94 | |||||
| 10 | WPW10352973 | Actuator (Replaces: W10163975) |
|
Immediately | $ 134.69 | ||||
| 11 | WP8540282 | Screw, M4-1.8 X 16 (Replaces: 8540282) |
|
$ 11.56 | |||||
| 12 | W10351808 | Housing, Dispenser Assembly (includes Item 9) |
|
$ 103.89 | |||||
| 13 | WP8181712 | Nozzle, Distribution (Replaces: W10003110) |
|
$ 89.11 | |||||
| 14 | W10538827 | Hose, Flowmeter To Dispenser (Replaces: W10239936) |
|
$ 26.99 | |||||
| 15 | WPW10121596 | Separator, With Selection Slider (Replaces: W10015200) |
|
$ 73.07 | |||||
| 16 | W10256661 | Siphon, Bleach/softener |
|
$ 116.94 | |||||
| 17 | W10003140 | Cover, Detergent Drawer |
|
$ 85.63 | |||||
| 18 | W10256683 | Drawer, Detergent (complete) |
|
$ 52.63 | |||||
| 19 | W10315748 | Handle, Drawer (cosmetallic) |
|
$ 74.13 | |||||
| 19 | W10281852 | Handle, Drawer (white) |
|
- | |||||
| 19 | W10316371 | Handle, Drawer (red) |
|
$ 64.27 | |||||
| 20 | W10239910 | Clamp, Hose |
|
Immediately | $ 59.43 | ||||
| 21 | WPW10239966 | Hose, Dispenser To Bellow (Replaces: W10239966) |
|
$ 82.95 |
