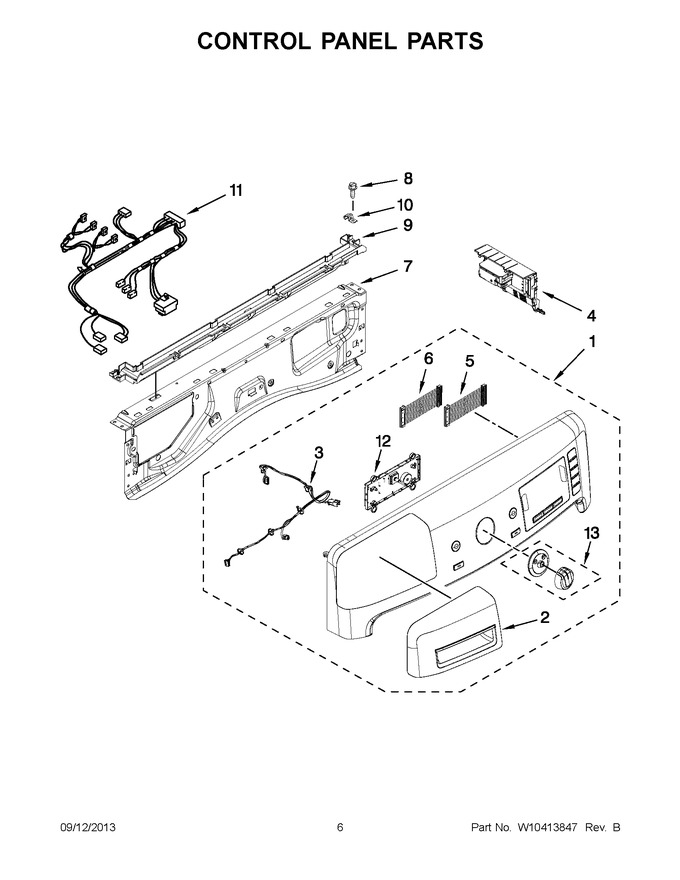

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10387861 | Console Asssembly (red) |
|
- | |||||
| 1 | W10387859 | Console Asssembly (cosmetallic) |
|
$ 419.18 | |||||
| 1 | W10387856 | Console Asssembly (white) |
|
- | |||||
| 2 | W10281852 | Handle, Dispenser Drawer (white) |
|
- | |||||
| 2 | W10316371 | Handle, Dispenser Drawer (red) |
|
$ 64.27 | |||||
| 2 | W10315748 | Handle, Dispenser Drawer (cosmetallic) |
|
$ 74.13 | |||||
| 3 | W10271988 | Harness, Main Ui |
|
$ 241.44 | |||||
| 4 | W10442139 | Control Unit, Central |
|
$ 339.37 | |||||
| 5 | W10309986 | Harness, Jumper |
|
$ 16.05 | |||||
| 6 | W10309987 | Harness, Jumper |
|
$ 12.46 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 166.23 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.83 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 86.61 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.72 | |||||
| 11 | W10271980 | Harness, Wiring (upper Main) |
|
$ 248.03 | |||||
| 12 | W10455729 | Ui, Center (includes Knob And Inlay) |
|
- | |||||
| 13 | W10514146 | Kit, Knob And Inlay |
|
Immediately | $ 96.76 |
