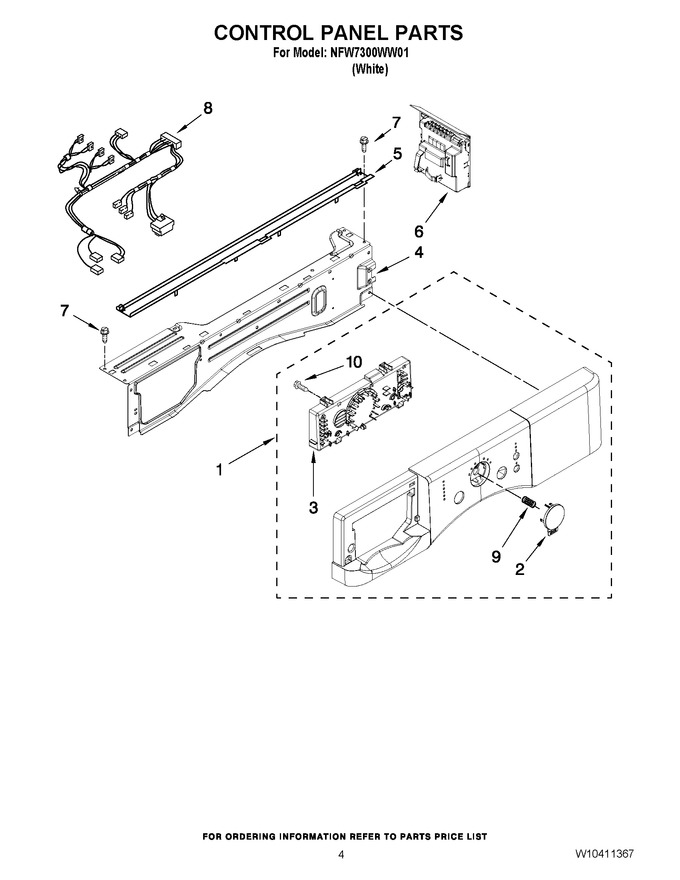

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10325310 | Console (Replaces: W10325310) |
|
$ 405.86 | |||||
| 2 | W10212800 | Button, Cycle (Replaces: W10311352) |
|
$ 77.73 | |||||
| 3 | W10212764 | User Interface |
|
$ 244.23 | |||||
| 4 | W10846488 | Brace, Top Front (Replaces: W10240776) |
|
$ 85.04 | |||||
| 5 | 8540839 | Channel, Water |
|
$ 27.81 | |||||
| 6 | W10315850 | Microcomputer, Machine Control |
|
- | |||||
| 7 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 10.94 | ||||
| 8 | WPW10323099 | Harness, Main Wiring (Replaces: W10323099) |
|
$ 296.65 | |||||
| 9 | W10215807 | Spring, Cycle Button |
|
$ 20.97 | |||||
| 10 | W10006580 | Screw, M3-1.12x12 |
|
- |
