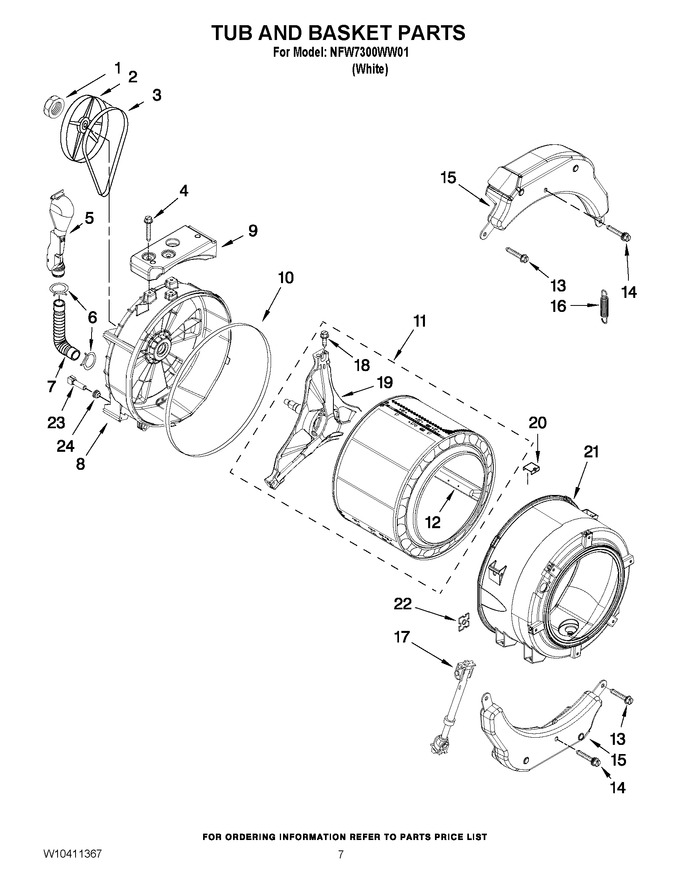

06 - Tub And Basket Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10283361		Nut, Pulley   (Replaces: 8533999)			Immediately	$ 79.11
2	WP8540088C		Pulley   (Replaces: 8540088C)				$ 196.32
3	WP8540101		Belt, Drive   (Replaces: 8540101)			Immediately	$ 42.79
4	W11028021		Screw, Rear Counterweight   (Replaces: W10246531)				$ 7.92
5	W10142720		Pipe, Ventilation				$ 105.17
6	8540010		Clamp, Vent Hose				$ 11.18
7	W11398765		Hose, Exhaust   (Replaces: 8540019)				$ 30.18
8	W11239040		Tub, Rear (includes Items 10 & 22)   (Replaces: W10200751)				$ 763.49
9	WPW10200747		Counterweight, Rear   (Replaces: W10200747)				$ 161.12
10	WPW10111158		Gasket, Tub   (Replaces: 8540090)			Immediately	$ 99.13
11	WPW10202459		Basket, Complete   (Replaces: W10202459)				$ 567.09
12	WP8540360		Baffle, Tub   (Replaces: 8540360)			Immediately	$ 84.43
13	W11685857		Bolt, Counterweight   (Replaces: W10094780)				$ 14.10
14	WPW10259288		Bolt Assembly, Counterweight Center Hole   (Replaces: W10259288)				$ 13.31
15	WPW10223198		Counterweight, Front   (Replaces: W10223198)			Immediately	$ 178.91
16	280159		Spring, Suspension (set Of 2)   (Replaces: W10010360)				$ 106.76
17	W10822553		Shock Absorber   (Replaces: W10015830)			Immediately	$ 83.35
18	WP8540382		Screw   (Replaces: 8540382)				$ 6.95
19	W10202464		Crosspiece Asm		Appelez-nous	-
20	WP8540092		Clamp, Tub   (Replaces: 8540092)				$ 7.59
21	W10313497		Tub, Front (includes Items 10 & 22)   (Replaces: W10303340)				$ 273.87
22	WP8182512		Nut, Push-in   (Replaces: 8540072)			Immediately	$ 6.95
23	WPW10467289		Negative Thermistor Control   (Replaces: W10176659)			Immediately	$ 47.80
24	W11590578		Seal, Rubber   (Replaces: 8540766)			Immediately	$ 7.97
