Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10212596 Valve, Water Inlet (double)   (Replaces: W10212596) In-Stock Immediately $ 92.96

2 WPW10212598 Valve, Water Inlet (single)   (Replaces: W10212598) In-Stock Immediately $ 73.18

3 WP596669 Clamp, Hose   (Replaces: 370450) In-Stock Immediately $ 8.82

4 W11230114 Screw, Valve   (Replaces: 8540513) Special Order $ 13.94

5 WP8183181 Nozzle, Inlet   (Replaces: 8183181) Special Order $ 94.82

6 W10803052 Hose, Valve To Dispenser   (Replaces: W10212611) Special Order $ 14.40

7 WP8540402 Drawer, Detergent   (Replaces: 8540402) In-Stock Immediately $ 137.17

8 WP8540399 Cover, Detergent Drawer   (Replaces: 8540399) Special Order $ 78.59

9 W10003170 Hook, Drawer Appelez-nous -
10 WP8540429 Siphon, Bleach/softener   (Replaces: 8540429) Special Order $ 16.01

11 W11366227 Hose, Dispenser To Tub   (Replaces: 8540063) In-Stock Immediately $ 23.35

12 W11622908 Clamp, Hose   (Replaces: 8281276) Special Order $ 23.33

13 WPW10399327 Dispenser, Complete   (Replaces: W10212602) Special Order $ 318.72

14 W10307875 Handle, Drawer Appelez-nous -
15 W10216285 Medallion Special Order $ 45.29


    View Diagram in Separate Window     Print Icon   Print Part List

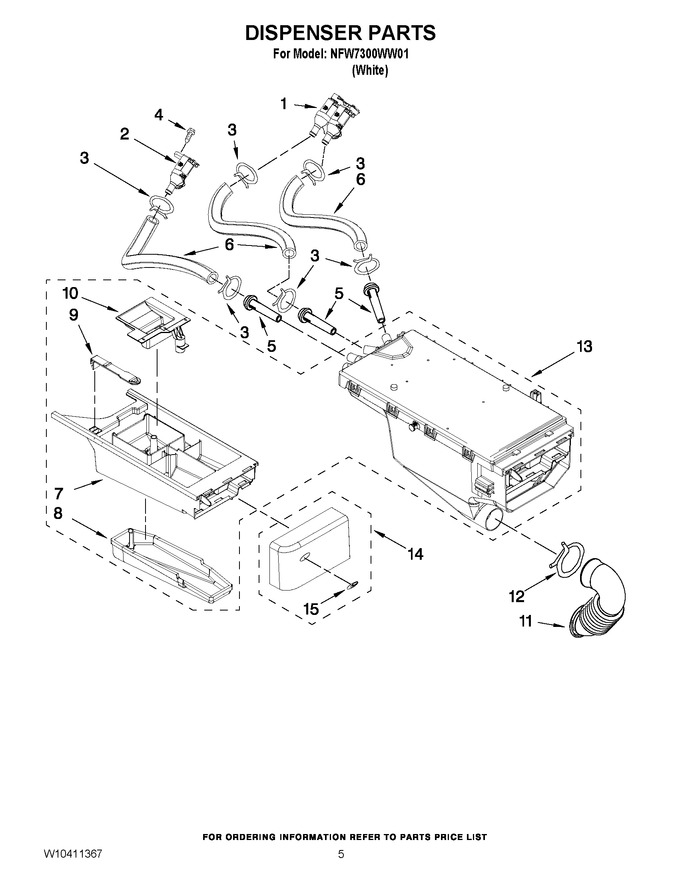

Diagram for NFW7300WW01
