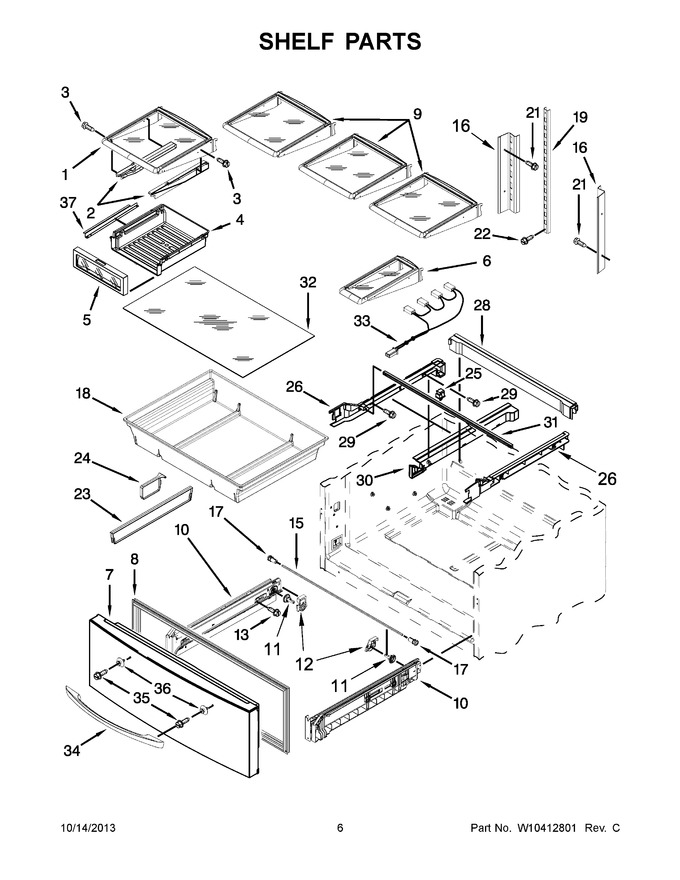

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11243759 | Assembley, Shelf & Roller (Replaces: W10345310) |
|
Immediately | $ 252.29 | ||||
| 2 | WPW10346890 | Runner, Roller (right Hand) (Replaces: W10346890) |
|
Immediately | $ 291.40 | ||||
| 2 | WPW10346891 | Runner, Roller (left Hand) (Replaces: W10346891) |
|
Immediately | $ 291.52 | ||||
| 3 | WP8281136 | Screw (Replaces: 8281136) |
|
$ 7.30 | |||||
| 4 | W11696630 | Pan-deli (Replaces: W10366647) |
|
Immediately | $ 92.40 | ||||
| 5 | WPW10396909 | Front-deli Pan (Replaces: W10396909) |
|
$ 110.47 | |||||
| 6 | W11241612 | Shelf, Mini (Replaces: W10329926) |
|
$ 245.68 | |||||
| 7 | 13107112WQ | Pantry Door (white) (Replaces: 13107104W) |
|
$ 968.77 | |||||
| 7 | 13107112BQ | Pantry Door (black) (Replaces: 13107104B) |
|
$ 800.59 | |||||
| 7 | 13107104S | Pantry Door (stainless) |
|
- | |||||
| 8 | W10443325 | Gasket-pantry (white) (Replaces: W10294107) |
|
Immediately | $ 301.95 | ||||
| 8 | W11625002 | Gasket-pantry (black) (Replaces: W10294113) |
|
$ 243.13 | |||||
| 8 | WPW10443326 | Gasket-pantry (apollo Grey) (Replaces: W10294114) |
|
$ 347.67 | |||||
| 9 | W11213107 | Shelf-stationary (Replaces: W10329925) |
|
$ 258.34 | |||||
| 10 | W11093713 | Adapter, Pantry (left Hand) (Replaces: W10295155) |
|
$ 141.44 | |||||
| 10 | W11093714 | Adapter, Pantry (right Hand) (Replaces: W10295157) |
|
$ 138.32 | |||||
| 11 | W10277360 | Gear, Spur |
|
$ 31.85 | |||||
| 12 | W10294414 | Cover, Gear (right Hand) |
|
$ 83.48 | |||||
| 12 | W10284709 | Cover, Gear (left Hand) |
|
$ 73.89 | |||||
| 13 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 11.36 | ||||
| 15 | W10298176 | Shaft-rack |
|
- | |||||
| 16 | W10251968 | Ladder, Side (left Hand) |
|
$ 27.38 | |||||
| 16 | W10251965 | Ladder, Side (right Hand) |
|
$ 31.08 | |||||
| 17 | WPW10277361 | Collar-gear (Replaces: W10277361) |
|
$ 12.09 | |||||
| 18 | WPW10530656 | Pan, Pantry (Replaces: W10268846) |
|
$ 240.88 | |||||
| 19 | W10273464 | Ladder, Center |
|
Immediately | $ 30.19 | ||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 22 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.79 | |||||
| 23 | W10839397 | Divider, Large Pantry (Replaces: W10328402) |
|
$ 51.85 | |||||
| 24 | W10328403A | Divider, Small Pantry (Replaces: W10328403) |
|
$ 39.95 | |||||
| 25 | W11291138 | Switch-rocker (Replaces: 12466104) |
|
Immediately | $ 36.67 | ||||
| 26 | W11715934 | Rail, Pantry (right Hand) (Replaces: W10311726) |
|
$ 45.82 | |||||
| 26 | W10311723 | Rail, Pantry (left Hand) |
|
$ 142.03 | |||||
| 28 | W10331298 | Rail-rear Pantry |
|
- | |||||
| 29 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 30 | W10311725 | Cover, Pantry Rail (left Hand) |
|
$ 18.24 | |||||
| 31 | 12227305 | Brace-pantry |
|
- | |||||
| 32 | WPW10296571 | Glass-pantry Shelf (Replaces: W10346616) |
|
$ 247.10 | |||||
| 33 | W10335721 | Harness-rc-led |
|
- | |||||
| 34 | W10314521 | Handle-snack Pan (black) |
|
- | |||||
| 34 | WPW10314520K | Handle-snack Pan (white) (Replaces: W10314520) |
|
$ 241.66 | |||||
| 34 | WPW10314522K | Handle-snack Pan (stainless) (Replaces: W10314522) |
|
$ 280.70 | |||||
| 35 | W10290759 | Screw |
|
$ 5.83 | |||||
| 36 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 | ||||
| 37 | W11226546 | Runner, Channel (Replaces: W10385043) |
|
$ 125.49 |
