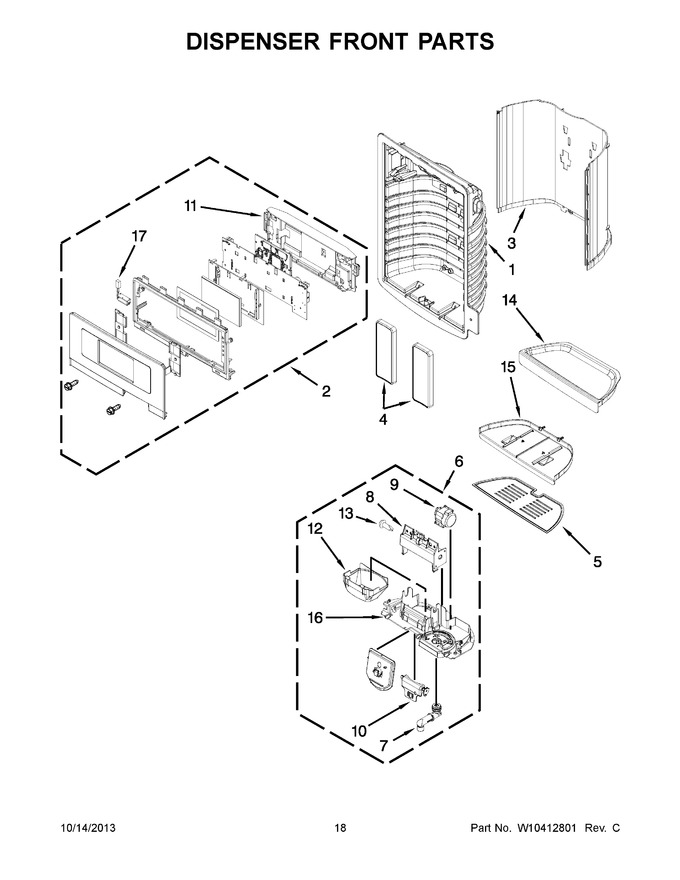

10 - Dispenser Front Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10434053		U I Assemly (black)   (Replaces: W10398817)				$ 353.17
2	W10398819		U I Assemly (stainless)		Appelez-nous	-
2	W10398816		U I Assemly (white)		Appelez-nous	-
3	W11045976		Dispenser, False Wall (black)   (Replaces: W10233560)				$ 43.18
3	W11045978		Dispenser, False Wall (grey)   (Replaces: W10299897)				$ 90.33
3	W11045975		Dispenser, False Wall (white)   (Replaces: W10215699)		Appelez-nous	-
4	W10353846		Pad-assembly- With Blue Light (white)				$ 280.01
4	WPW10353848		Pad-assembly, With Blue Light (grey)   (Replaces: W10353848)				$ 321.56
4	W11661207		Pad-assembly- With Blue Light (black)   (Replaces: W10353847)				$ 66.19
5	W10215957		Grate, Drip Tray				$ 52.76
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	W10254277		Cover, Board		Appelez-nous	-
12	WPW10435760		Guide-ice   (Replaces: W10339578)				$ 23.94
13	W10174818		Clip Motor Coupling		Appelez-nous	-
14	W11045970		Tray, Dispenser (white)   (Replaces: W10267869)				$ 65.93
14	WPW10305897		Tray-dispenser (stainless)   (Replaces: W10305897)				$ 84.81
14	W11045971		Tray, Dispenser (black)   (Replaces: W10267870)				$ 65.90
15	WPW10267863		Slide Tray, Dispenser (grey)   (Replaces: W10267863)				$ 73.22
15	W10267860		Slide, Tray Dispenser (white)		Appelez-nous	-
15	W10267861		Slide Tray, Dispenser (black)				$ 74.39
16	W10278987		Separator		Appelez-nous	-
17	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
