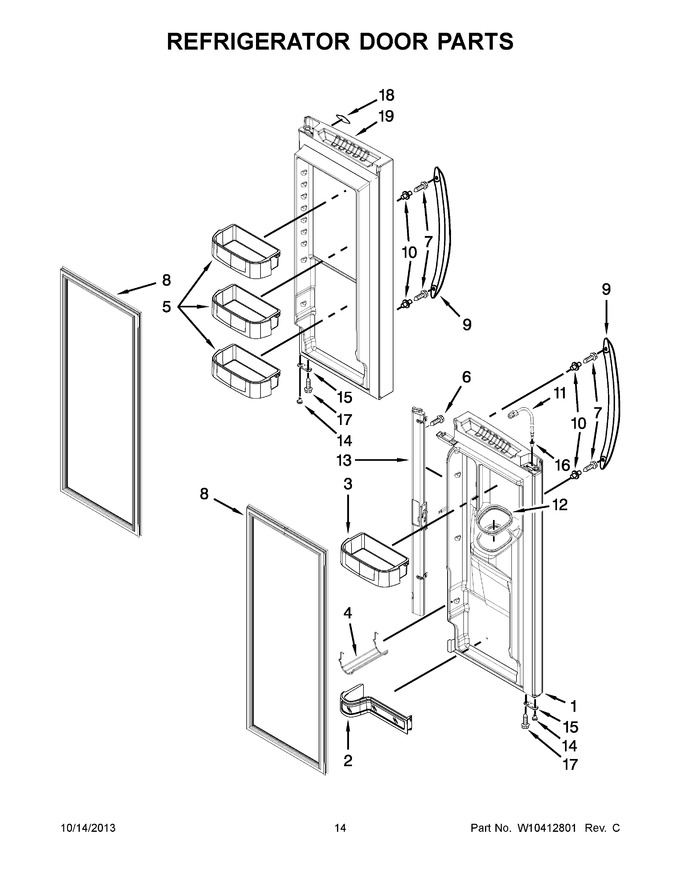

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107318BQ | Door, Left (black) (Replaces: 13107318B) |
|
- | |||||
| 1 | 13107318S | Door, Left (stainless) |
|
- | |||||
| 1 | 13107318WQ | Door, Left (white) (Replaces: 13107318W) |
|
- | |||||
| 2 | W10355269 | Bucket, Upper |
|
$ 78.54 | |||||
| 3 | W11379148 | Bucket, Small (Replaces: W10355270) |
|
Immediately | $ 164.59 | ||||
| 4 | W10335942 | Rack-hanging-wire |
|
$ 134.87 | |||||
| 5 | W11706640 | Bucket, Gallon (Replaces: W10355264) |
|
$ 75.11 | |||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | W10290759 | Screw |
|
$ 5.83 | |||||
| 8 | W10830276 | Gasket, Door (white) (Replaces: W10294125) |
|
$ 335.11 | |||||
| 8 | W10830277 | Gasket, Door (black) (Replaces: W10294126) |
|
$ 335.09 | |||||
| 8 | W10830274 | Gasket, Door (apollo Grey) (Replaces: W10294127) |
|
Immediately | $ 205.74 | ||||
| 9 | W10314516 | Door Handle (black) |
|
- | |||||
| 9 | WPW10314517K | Door Handle (stainless) (Replaces: W10314517) |
|
$ 243.37 | |||||
| 9 | WPW10314515 | Door Handle (white) (Replaces: W10314515) |
|
$ 238.49 | |||||
| 10 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 | ||||
| 11 | W10296451 | Tube, Water |
|
$ 53.54 | |||||
| 12 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 13 | WPW10311757 | Mullion, Door (grey) (Replaces: W10311757) |
|
$ 141.14 | |||||
| 13 | W10311759 | Mullion, Door (white) |
|
$ 126.88 | |||||
| 13 | W10311758 | Mullion, Door (black) |
|
$ 131.64 | |||||
| 14 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 14 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 14 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 15 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 15 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 15 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 16 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 17 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 18 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 69.98 | |||||
| 18 | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 73.70 | |||||
| 18 | WPW10243391 | Nameplate (stainless) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 19 | 13107319SQ | Door, Right (stainless) (Replaces: 13107319S) |
|
$ 1,094.27 | |||||
| 19 | 13107319WQ | Door, Right (white) (Replaces: 13107319W) |
|
$ 820.85 | |||||
| 19 | 13107319BQ | Door, Right (black) (Replaces: 13107319B) |
|
$ 872.38 |
