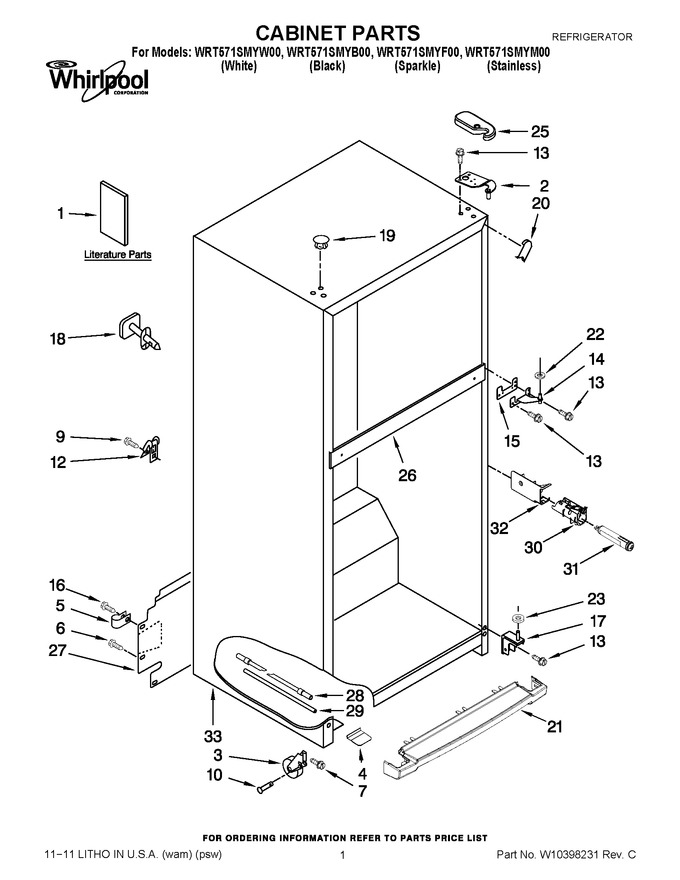

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10414768 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10339989 | Energy Label |
|
- | |||||
| 1 | W10343810 | Use & Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./ Fzr. |
|
$ 30.30 | |||||
| 2 | WPW10300065 | Hinge (top) (Replaces: W10300069) |
|
$ 13.94 | |||||
| 3 | W10849386 | Roller, Front (Replaces: W10327136) |
|
$ 114.75 | |||||
| 4 | WPW10339257 | Endcap, Grille (white) (Replaces: W10339257) |
|
$ 85.42 | |||||
| 4 | W10353930 | Endcap, Grille (black) |
|
$ 85.34 | |||||
| 4 | WPW10353932 | Endcap, Grille (midnight Grey) (Replaces: W10353932) |
|
$ 85.50 | |||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 11.92 | |||||
| 6 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 7 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 10 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 19.12 | ||||
| 12 | 549193 | Clamp,cord |
|
$ 14.06 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 14 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 15 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 16 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 17 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 9.28 | |||||
| 18 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 19 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 19.01 | |||||
| 19 | WPW10520307 | Hole Plug (6) (grey) (Replaces: 2254506) |
|
Immediately | $ 7.55 | ||||
| 19 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 20 | W10851579 | Corner Filler (2) (grey) (Replaces: W10283961) |
|
Immediately | $ 7.55 | ||||
| 20 | W11252732 | Corner Filler (2) (black) (Replaces: W10283960) |
|
$ 13.07 | |||||
| 20 | WPW10283959 | Corner Filler (2) (white) (Replaces: W10283959) |
|
$ 8.21 | |||||
| 21 | WPW10353941 | Grille (midnight Grey) (Replaces: W10353941) |
|
$ 153.23 | |||||
| 21 | WPW10300129 | Grille (white) (Replaces: W10300129) |
|
$ 109.55 | |||||
| 21 | WPW10353939 | Grille (black) (Replaces: W10353939) |
|
$ 169.90 | |||||
| 22 | WP489467 | Washer, Plain (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 23 | WP487576 | Washer, Nylon (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 25 | W10331654 | Cover, Hinge (white Ls) |
|
- | |||||
| 25 | W10353947A | Cover, Hinge (grey Rs) (Replaces: W10353947) |
|
$ 14.28 | |||||
| 25 | W10353950A | Cover, Hinge (grey Ls) (Replaces: W10353950) |
|
$ 24.38 | |||||
| 25 | W10353945A | Cover, Hinge (black Rs) (Replaces: W10353945) |
|
$ 15.13 | |||||
| 25 | W10353948A | Cover, Hinge (black Ls) (Replaces: W10353948) |
|
$ 15.13 | |||||
| 25 | W10331560A | Cover, Hinge (white Rs) (Replaces: W10331560) |
|
$ 13.44 | |||||
| 26 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 27 | WPW10384414 | Cover, Unit (Replaces: W10384414) |
|
$ 106.82 | |||||
| 28 | W10339208 | Tube, Filter Inlet |
|
- | |||||
| 29 | W10339207 | Tube, Filter Outlet |
|
- | |||||
| 30 | W10844267 | Housing, Water Filter (Replaces: W10346257) |
|
Immediately | $ 142.29 | ||||
| 31 | EDR1RXD1B | Water Filter (Replaces: W10217316) |
|
Immediately | $ 49.99 | ||||
| 32 | WPW10306392 | Cover, Housing (Replaces: W10306392) |
|
$ 106.06 | |||||
| 33 | N/P | Cabinet (not A Serviceable Part) |
|
- |
