| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

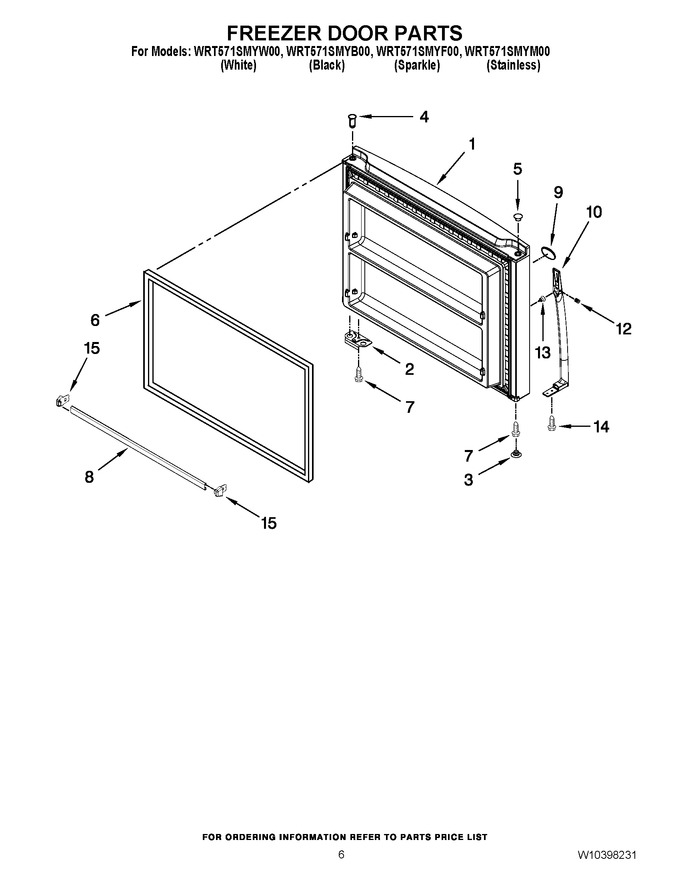

| 1 | LW10353323 | Freezer Door (includes Illus. 4 & 6) (sparkle) (Replaces: W10353323) |
|
- | |||||
| 1 | LW10353319 | Freezer Door (includes Illus. 4 & 6) (stainless) (Replaces: W10353319) |
|
- | |||||
| 1 | W10300080 | Freezer Door (includes Illus. 4 & 6) (white) |
|
- | |||||
| 1 | W10353299 | Freezer Door (includes Illus. 4 & 6) (black) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WPW10520307 | Hole Plug (grey) (Replaces: 2254506) |
|
Immediately | $ 7.55 | ||||
| 3 | WP2151652 | Hole Plug (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 3 | WP2183998 | Hole Plug (black) (Replaces: 2183998) |
|
$ 19.01 | |||||
| 4 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2212651 | Hole Plug, Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 5 | WP2254517 | Hole Plug, Hinge (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 5 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | W10249196 | Door Gasket, Magnetic (grey) (Replaces: W10171479) |
|
Immediately | $ 279.10 | ||||
| 6 | 2214269 | Door Gasket, Magnetic (black) |
|
- | |||||
| 6 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 336.01 | |||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 8 | WPW10469912 | Trim Door Shelf (Replaces: W10308875) |
|
$ 170.45 | |||||
| 9 | WPW10393264 | Nameplate (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 9 | W11178521 | Nameplate (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 10 | WPW10498430 | Handle (black) (Replaces: W10371979) |
|
$ 121.29 | |||||
| 10 | W11765172 | Handle (sparkle) (Replaces: W10371981) |
|
Immediately | $ 125.17 | ||||
| 10 | WPW10498429 | Handle (white) (Replaces: W10366325) |
|
$ 175.09 | |||||
| 12 | 690046 | Set Screw |
|
- | |||||
| 13 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 9.66 | ||||
| 14 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 15 | W10338485 | Endcap Trim (ls) |
|
$ 10.41 | |||||
| 15 | W10308871 | Endcap Trim (rs) |
|
$ 10.44 |
