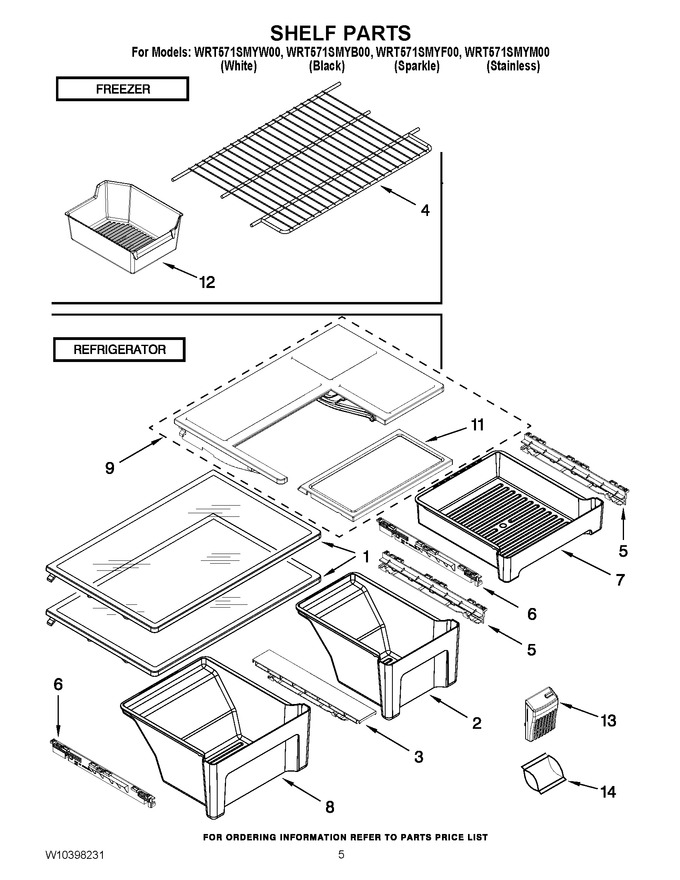

03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10423879 | Shelf Full 33`` |
|
- | |||||
| 2 | W10373943 | Crisper Pan 11`` |
|
$ 57.54 | |||||
| 3 | WPW10468557 | Track Rail Center (Replaces: W10404446) |
|
Immediately | $ 30.75 | ||||
| 4 | W10384386 | Shelf Wire Fc |
|
- | |||||
| 5 | WPW10468556 | Track Rail Rs (Replaces: W10404450) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10468555 | Track Rail Ls (Replaces: W10404449) |
|
Immediately | $ 25.10 | ||||
| 7 | WPW10308849 | Pan Meat 30`` (Replaces: W10308849) |
|
$ 142.20 | |||||
| 8 | W10373931 | Crisper Pan 16`` |
|
- | |||||
| 9 | W10345379 | Shelf 2/3 Flip 33`` |
|
- | |||||
| 11 | WPW10313893 | Shelf 2/3 Flip Frt (Replaces: W10313893) |
|
$ 190.30 | |||||
| 12 | WPW10425538 | Pan Ice Cube (Replaces: W10425538) |
|
$ 185.21 | |||||
| 13 | W11605789 | Holder, Filter (Replaces: W10408748) |
|
Immediately | $ 17.66 | ||||
| 14 | W10346771 | Filter, Produce Preserver |
|
- |
