SELECT A DIAGRAM

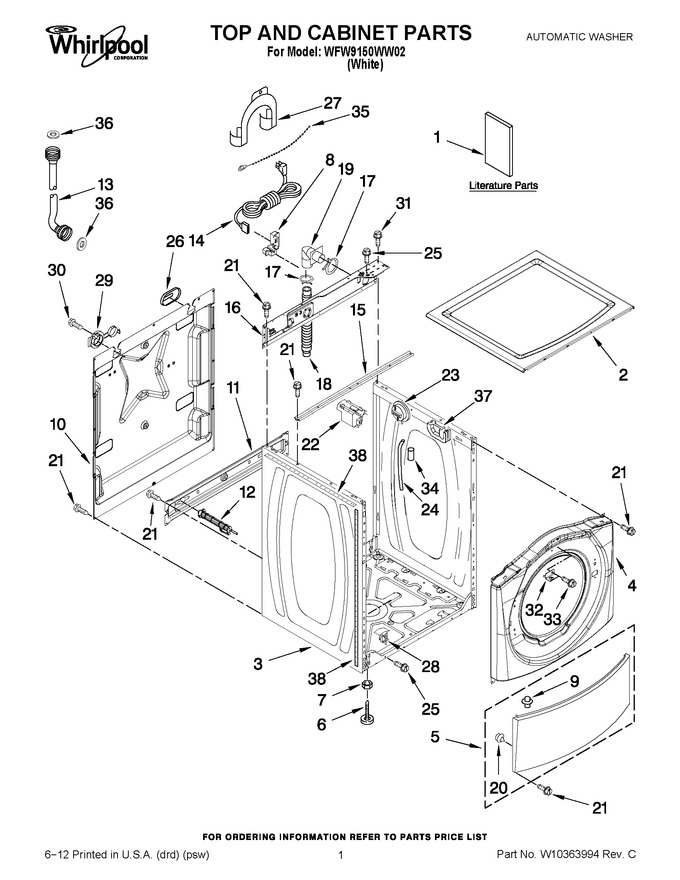

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Pump And Motor Parts


06 - Tub And Basket Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10252712		Energy Guide		Appelez-nous	-
1	W10252714		Use & Care Guide		Appelez-nous	-
1	W10385295		Tech Sheet		Appelez-nous	-
2	WPW10303994		Top   (Replaces: W10303994)				$ 312.96
3	W10410294		Cabinet   (Replaces: W10245758)				$ 367.09
4	W10255250		Panel, Front		Appelez-nous	-
5	WP8540664		Toe Panel   (Replaces: 8540813)				$ 359.15
6	W10862938		Foot, Leveling   (Replaces: W10245373)			Immediately	$ 12.59
7	WP3359452		Nut, Lock   (Replaces: 3359452)			Immediately	$ 7.19
8	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 16.72
9	8518891		Rivet				$ 13.40
10	WPW10258341		Panel, Rear   (Replaces: W10258341)				$ 299.00
11	W10189657		Brace, Transport				$ 87.28
12	W10763471		Bolt, Shipping (set Of 4)   (Replaces: W10251449)				$ 40.12
13	WP89503		Hose, Water Inlet (hot Water)   (Replaces: 8571378)			Immediately	$ 24.09
13	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194208)			Immediately	$ 24.09
14	W11764783		Cord, Power   (Replaces: W10205500)				$ 43.66
15	WP8540721		Brace, Top   (Replaces: 8540721)				$ 49.77
16	W10244560		Brace, Rear   (Replaces: W10299495)				$ 89.62
17	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
18	WP8181737		Hose, Drain (outer)   (Replaces: W10281257)			Immediately	$ 62.50
19	W11757170		Connector, Drain Hose   (Replaces: W10003260)			Immediately	$ 6.39
20	238614		Bumper				$ 80.76
21	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 10.94
22	WPW10367632		Filter, Interference   (Replaces: W10339736)				$ 122.22
23	W11417623		Switch, Pressure   (Replaces: W10239066)			Immediately	$ 64.77
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 35.23
25	8540479		Screw, Grounding				$ 8.78
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 6.95
27	WPW10280024		U-bend, Drain Hose   (Replaces: 8540021)				$ 79.53
28	WPW10085220		Microswitch   (Replaces: W10085220)				$ 33.25
29	W11116978		Sleeve, Cord Support   (Replaces: 8540728)				$ 22.80
30	8182201		Screw, 3 X 8 Mm   (Replaces: 8540727)				$ 13.41
31	8540329		Screw		Appelez-nous	-
32	8540669		Bracket, Console Retainer		Appelez-nous	-
33	WP98006631		Screw   (Replaces: 8533954)				$ 6.95
34	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 20.30
35	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
36	WP16123		Washer, Water Inlet Hose 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
37	8540644		Bracket-suspension Spring				$ 81.64
38	WP8318396A		Seal, Foam-iec   (Replaces: 8318396)				$ 37.82
