Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP8540108 Clamp, Bellow To Tub   (Replaces: 8540108) In-Stock Immediately $ 25.64

2 WPW10381562 Bellow   (Replaces: W10290499) In-Stock Immediately $ 178.80

3 WPW10253483 Lock, Door   (Replaces: W10253483) In-Stock Immediately $ 222.33

4 WP8540725 Screw   (Replaces: 8540725) Special Order $ 7.68

5 WP8540221 Hook, Door   (Replaces: 8540221) In-Stock Immediately $ 11.80

6 W10209545 Trim Ring, Outer Door Special Order $ 51.80

7 W11032829 Clamp, Bellow To Front Panel   (Replaces: W10217563) In-Stock Immediately $ 21.24

8 WP8540115 Clamp, Support   (Replaces: 8540115) Special Order $ 6.95

9 WP8540282 Screw   (Replaces: 8540282) Special Order $ 11.56

10 W11230114 Screw   (Replaces: 8540513) Special Order $ 13.28

11 W10344525 Door Assembly Appelez-nous -
12 WPW10388315 Glass, Door   (Replaces: W10387885) Special Order $ 328.84

13 WP489442 Screw   (Replaces: W10015090) In-Stock Immediately $ 10.94


    View Diagram in Separate Window     Print Icon   Print Part List

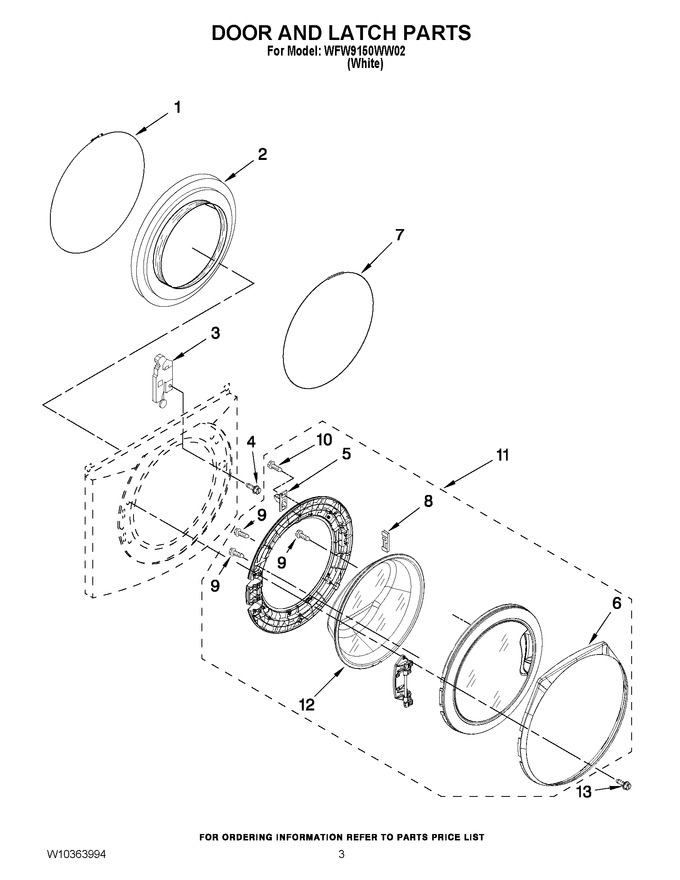

Diagram for WFW9150WW02
