SELECT A DIAGRAM

Diagram for 01 - Top And Cabinet Parts
01 - Top And Cabinet Parts

Diagram for 02 - Door And Latch Parts
02 - Door And Latch Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Dispenser Parts
04 - Dispenser Parts

Diagram for 05 - Pump And Motor Parts
05 - Pump And Motor Parts

Diagram for 06 - Tub And Basket Parts
06 - Tub And Basket Parts

Diagram for 07 - Optional Parts (not Included)
07 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10212596 Valve, Water Inlet (double)   (Replaces: W10212596) Special Order $ 92.96

2 WPW10212598 Valve, Water Inlet (single)   (Replaces: W10212598) In-Stock Immediately $ 73.18

3 WP596669 Clamp, Hose   (Replaces: 370450) In-Stock Immediately $ 8.40

4 W11230114 Screw, Valve   (Replaces: 8540513) Special Order $ 13.28

5 WP8183181 Nozzle, Inlet   (Replaces: 8183181) Special Order $ 90.30

6 W10803052 Hose, Valve To Dispenser   (Replaces: W10212611) Special Order $ 13.71

7 WP8540402 Drawer, Detergent   (Replaces: 8540402) In-Stock Immediately $ 137.17

8 WP8540399 Cover, Detergent Drawer   (Replaces: 8540399) Special Order $ 74.85

9 W10003170 Hook, Drawer Appelez-nous -
10 WP8540429 Siphon, Bleach/softener   (Replaces: 8540429) Special Order $ 15.25

11 W11366227 Hose, Dispenser To Tub   (Replaces: 8540063) In-Stock Immediately $ 23.35

12 W11622908 Clamp, Hose   (Replaces: 8281276) Special Order $ 22.22

13 WPW10399327 Dispenser, Complete   (Replaces: W10399327) Special Order $ 303.54

14 W10212806 Handle, Drawer Special Order $ 41.03

15 W10117943 Medallion Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

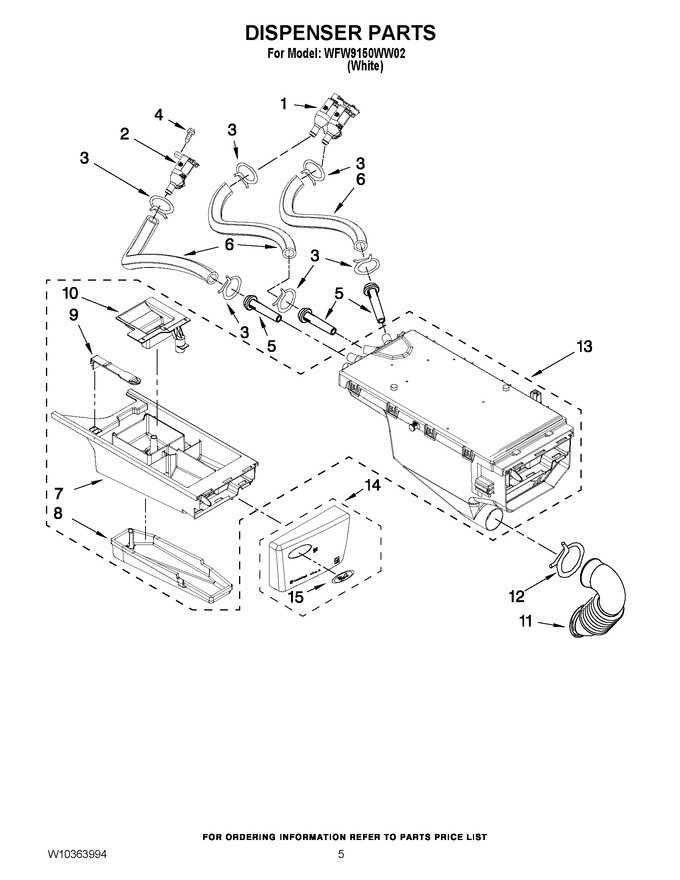

Diagram for WFW9150WW02
