01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Freezer Door Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Optional Parts

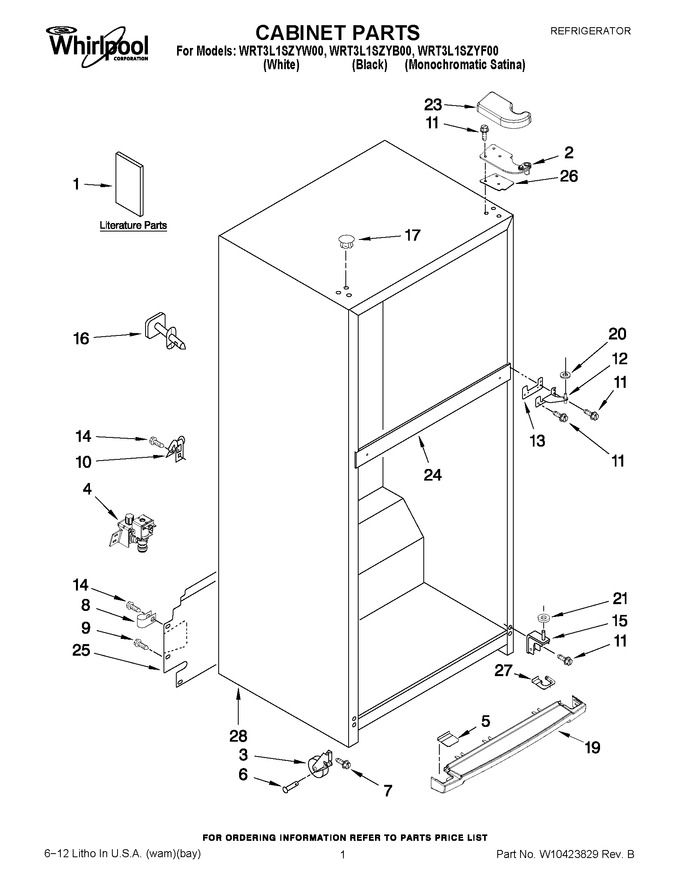

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual, Ref./ Fzr.				$ 30.30
1	W10404596		Service & Wiring Sheet		Appelez-nous	-
1	W10352352		Energy Label		Appelez-nous	-
1	W10343810		Use & Care Bil		Appelez-nous	-
2	WPW10300065		Hinge (top)   (Replaces: W10300069)				$ 13.94
3	WP2166108		Roller, Front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	WPW10279909		Valve, Inlet   (Replaces: W10279909)				$ 189.89
5	W10353930		Cover, Toe Grille (black)				$ 85.34
5	WPW10339257		Cover, Toe Grille (white)   (Replaces: W10339257)				$ 85.42
5	WPW10353932		Cover, Toe Grille (midnight Grey)   (Replaces: W10353932)				$ 85.50
6	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 19.12
7	W10850698		Screw   (Replaces: 3400517)				$ 14.42
8	WP488878		Tube Clamp   (Replaces: 488878)				$ 12.18
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	549193		Clamp, Cord				$ 14.06
11	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
12	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
13	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 11.18
14	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
15	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 9.28
16	N/P		Fitting, Water Tube (not Serviced)		Appelez-nous	-
17	WP2183998		Hole Plug (6) (black)   (Replaces: 2183998)				$ 19.01
17	WPW10520307		Hole Plug (6) (apollo Grey)   (Replaces: 2254506)			Immediately	$ 7.55
17	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 22.87
19	WPW10353939		Grille (black)   (Replaces: W10353939)				$ 169.90
19	WPW10300129		Grille (white)   (Replaces: W10300129)				$ 109.55
19	WPW10353941		Grille (apollo Grey)   (Replaces: W10353941)				$ 153.23
20	WP489467		Washer, Plain   (Replaces: 489341)			Immediately	$ 11.42
21	WP487576		Washer, Nylon   (Replaces: 487576)			Immediately	$ 9.88
23	W10353950A		Cover, Hinge (grey, Midnight Ls)   (Replaces: W10353950)				$ 24.38
23	W10331560A		Cover, Hinge (white Rs)   (Replaces: W10331560)				$ 13.44
23	W10331654		Cover, Hinge (white Ls)		Appelez-nous	-
23	W10353945A		Cover, Hinge (black Rs)   (Replaces: W10353945)				$ 15.13
23	W10353948A		Cover, Hinge (black Ls)   (Replaces: W10353948)				$ 15.13
23	W10353947A		Cover, Hinge (grey, Midnight Rs)   (Replaces: W10353947)				$ 14.28
24	N/P		Rail Center (not Serviced)		Appelez-nous	-
25	WPW10384414		Cover, Unit   (Replaces: W10384414)				$ 106.82
26	W10883637		Hinge Shim, Top   (Replaces: W10338247)				$ 15.95
27	W10381064		Cover, Toe Grille (hinge Side) (midnight Grey)				$ 70.38
27	W10381060		Cover, Toe Grille (hinge Side) (black)				$ 36.12
27	W10381059		Cover, Toe Grille (hinge Side) (white)				$ 87.57
28	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
