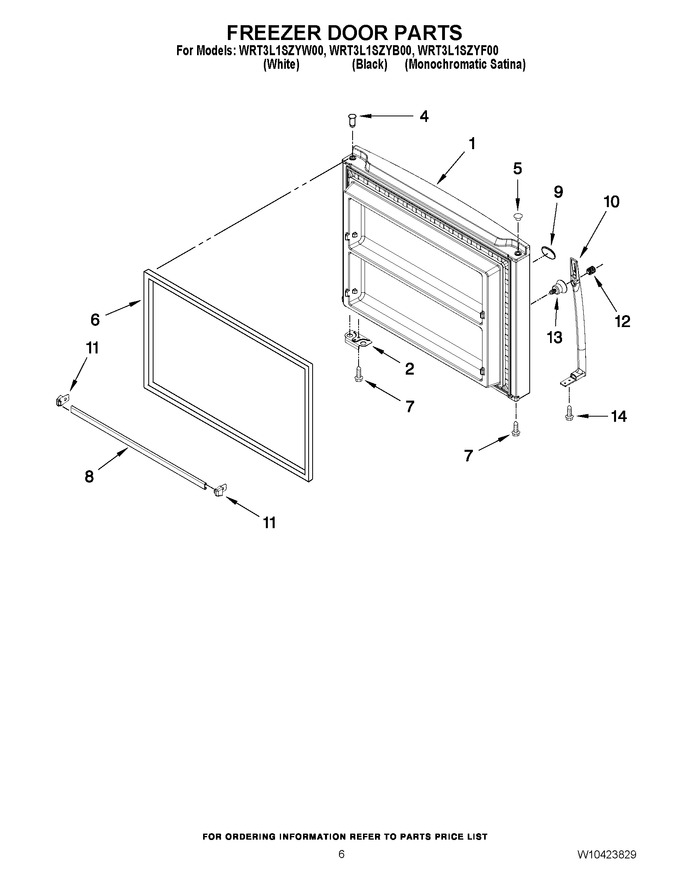

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10406261		Freezer Door (includes Illus. 4 & 6) (black)		Appelez-nous	-
1	W10406263		Freezer Door (includes Illus. 4 & 6) (sparkle Steel)		Appelez-nous	-
1	W10406259		Freezer Door (includes Illus. 4 & 6) (white)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
4	W11189115		Thimble   (Replaces: W10334042)				$ 12.71
5	WP2212651		Hole Plug, Hinge Sleeve (black)   (Replaces: 2212651)				$ 24.21
5	WP2254517		Hole Plug Hinge Sleeve (apollo Grey)   (Replaces: 2254517)			Immediately	$ 24.34
5	WP2212648		Hole Plug, Hinge Sleeve (white)   (Replaces: 2212648)			Immediately	$ 8.19
6	2159060		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214967)				$ 336.01
6	W10249196		Door Gasket, Magnetic (apollo Grey)   (Replaces: W10171479)			Immediately	$ 279.10
6	2177310		Door Gasket, Magnetic (black)   (Replaces: 2214969)				$ 335.31
7	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
8	WPW10469912		Trim, Door Shelf (2)   (Replaces: W10308875)				$ 170.45
9	W11178521		Nameplate (grey)   (Replaces: W10481433)			Immediately	$ 63.13
9	W11178521		Nameplate (white)   (Replaces: W10481434)			Immediately	$ 63.13
10	WPW10498429		Handle (white)   (Replaces: W10498429)				$ 175.09
10	W11765172		Handle (titanium)   (Replaces: W10498431)			Immediately	$ 125.17
10	WPW10498430		Handle (black)   (Replaces: W10498430)				$ 121.29
11	W10338485		Endcap Trim Ls				$ 10.41
11	W10308871		Endcap Trim Rs				$ 10.44
12	690046		Set Screw		Appelez-nous	-
13	WPW10170540		Screw, Mounting   (Replaces: W10170540)			Immediately	$ 8.51
14	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
