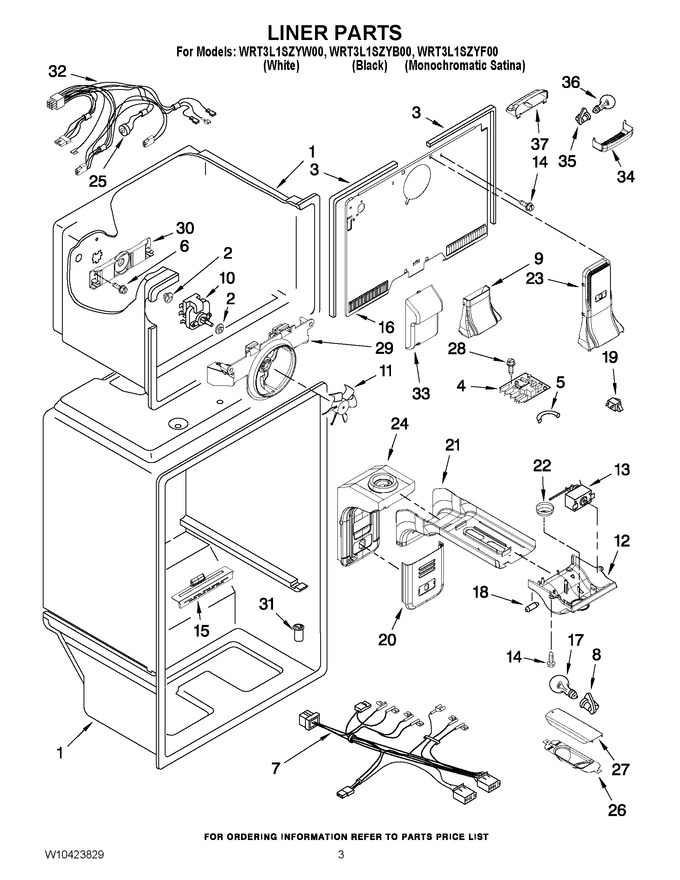

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254360) |
|
$ 28.12 | |||||
| 4 | WPW10352689 | Control, Defrost (Replaces: W10352689) |
|
$ 299.70 | |||||
| 5 | WP2196003 | Thermostat Tube Barrier (Replaces: W10381575) |
|
$ 8.35 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 7 | W10318068 | Wire Assembly, Control Box |
|
$ 132.58 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | W10396926 | Tower Assy |
|
$ 39.05 | |||||
| 10 | WP2315539 | Fan Motor (Replaces: 2315539) |
|
Immediately | $ 83.25 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | W10316941 | Control Box |
|
$ 98.58 | |||||
| 13 | WPW10584888 | Thermostat Assembly (includes 5 & 18) (Replaces: W10343913) |
|
Immediately | $ 197.80 | ||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 15 | W10345375 | Cover, Rear |
|
- | |||||
| 16 | W10385132 | Cover, Evaporator |
|
- | |||||
| 17 | W10887190 | Light Bulb (Replaces: W10311528) |
|
Immediately | $ 19.23 | ||||
| 18 | WPW10584888 | Weight, Thermal (Replaces: W10357190) |
|
Immediately | $ 197.80 | ||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | W10310927 | Air Diffuser Cup |
|
- | |||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 114.36 | |||||
| 22 | W10356940 | Knob, Thermostat |
|
- | |||||
| 23 | W10305174 | Air Tower |
|
$ 43.06 | |||||
| 24 | W10376137 | Air Diffuser, Bottom |
|
- | |||||
| 25 | WPW10392132 | Defrost, Bi-metal (Replaces: W10392132) |
|
Immediately | $ 9.05 | ||||
| 26 | W10300161 | Shield, Light |
|
Immediately | $ 96.62 | ||||
| 27 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 117.96 | |||||
| 28 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 30 | 2254454 | Bracket Evap. Fan, Rear |
|
Immediately | $ 75.44 | ||||
| 31 | WP2210509 | Valve, Tube-body (Replaces: 2210509) |
|
$ 99.15 | |||||
| 32 | W11561072 | Wire Assembly, Frzr. Compartment (includes 25) (Replaces: W10336529) |
|
$ 96.45 | |||||
| 33 | WPW10339203 | Cover, Water Tube (Replaces: W10339203) |
|
$ 7.55 | |||||
| 34 | WPW10313918 | Light Cover, Fc (Replaces: W10313918) |
|
Immediately | $ 95.34 | ||||
| 35 | W11661565 | Light Socket, Fc (Replaces: W10440814) |
|
Immediately | $ 35.82 | ||||
| 36 | W11518235 | Light Bulb, Fc (Replaces: W10473925) |
|
Immediately | $ 29.29 | ||||
| 37 | WPW10313917 | Housing, Light (Replaces: W10313917) |
|
Immediately | $ 91.07 |
