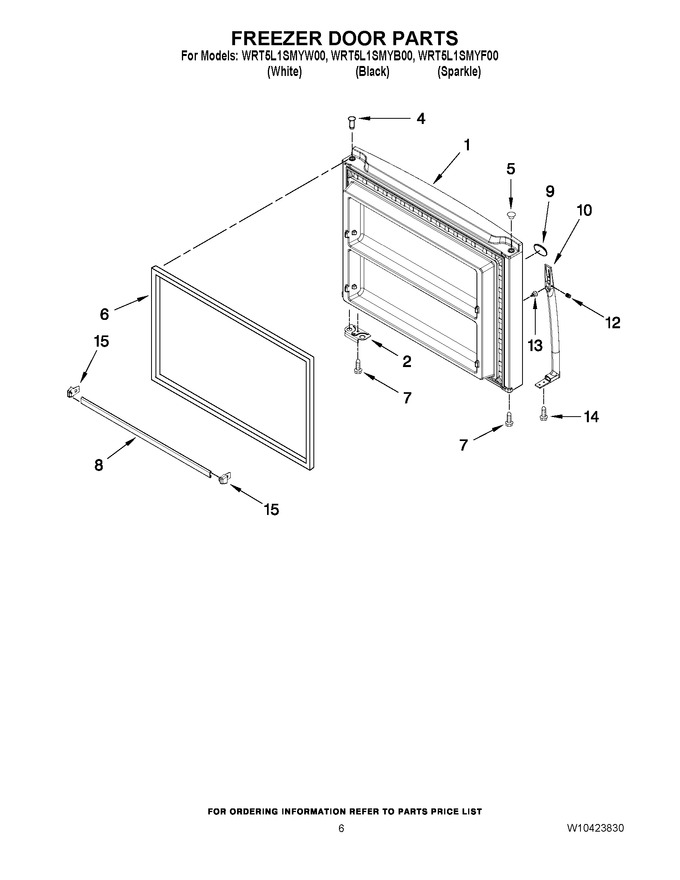

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10353323		Freezer Door (includes Illus. 4 & 6) (sparkle)   (Replaces: W10353323)		Appelez-nous	-
1	W10300080		Freezer Door (includes Illus. 4 & 6) (white)		Appelez-nous	-
1	W10353299		Freezer Door (includes Illus. 4 & 6) (black)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
4	W11189115		Thimble   (Replaces: W10334042)				$ 12.10
5	WP2254517		Hole Plug, Hinge (grey)   (Replaces: 2254517)			Immediately	$ 23.18
5	WP2212648		Hole Plug, Hinge (white)   (Replaces: 2212648)			Immediately	$ 7.80
5	WP2212651		Hole Plug, Hinge (black)   (Replaces: 2212651)				$ 23.06
6	2177310		Door Gasket, Magnetic (black)   (Replaces: 2214969)				$ 319.34
6	2159060		Door Gasket, Magnetic (beige)   (Replaces: 2214967)				$ 320.01
6	W10249196		Door Gasket, Magnetic (grey)   (Replaces: W10171479)			Immediately	$ 265.81
7	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
8	WPW10469912		Trim Door Shelf   (Replaces: W10308875)				$ 162.33
9	W11178521		Nameplate (white)   (Replaces: W10387117)			Immediately	$ 63.13
9	WPW10393264		Nameplate (grey)   (Replaces: W10393264)				$ 64.51
10	WPW10498429		Handle (white)   (Replaces: W10366325)				$ 166.75
10	W11765172		Handle (sparkle)   (Replaces: W10371981)			Immediately	$ 119.21
10	WPW10498430		Handle (black)   (Replaces: W10371979)				$ 115.51
12	690046		Set Screw		Appelez-nous	-
13	8534058		Screw				$ 8.87
14	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
15	W10338485		Endcap Trim (ls)				$ 10.41
15	W10308871		Endcap Trim (rs)				$ 10.44
