View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts

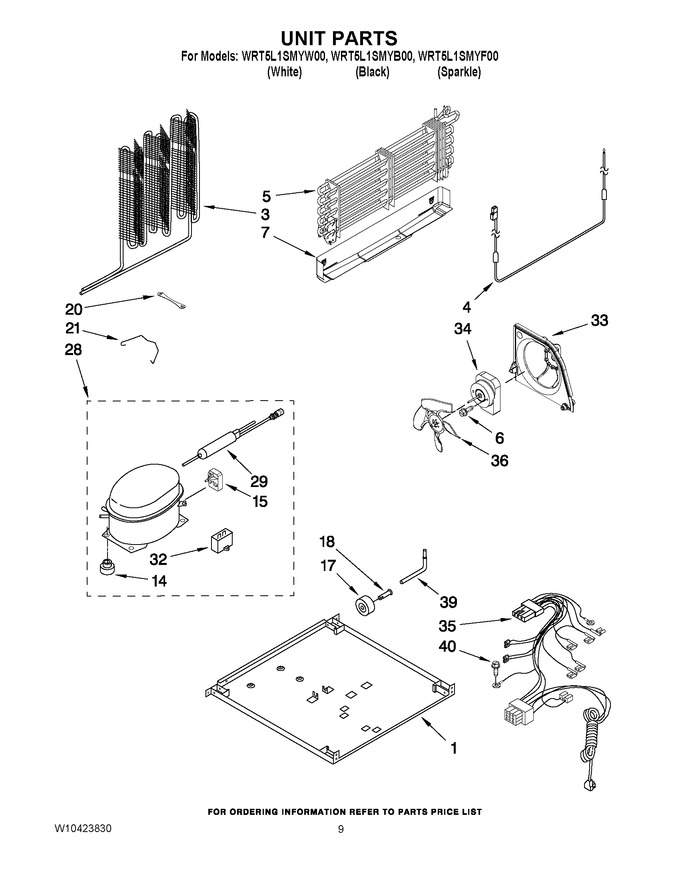

06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11396825 | Plate, Unit Mounting (Replaces: W10300118) |
|
$ 133.48 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 264.95 | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 245.63 | ||||
| 5 | WPW10314205 | Evaporator Assy. (Replaces: W10314205) |
|
$ 344.18 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | W10890667 | Drain Pan (Replaces: W10314200) |
|
$ 144.71 | |||||
| 14 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.42 | |||||
| 15 | WPW10197426 | Start-device Combination (service) (Replaces: W10136414) |
|
$ 154.34 | |||||
| 15 | WPW10197428 | Start-device Combination (production) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 18.21 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 19.82 | ||||
| 21 | W10204187 | Bale Strap |
|
- | |||||
| 28 | W10309988 | Compressor (includes Items 14,15,22,29,32) (Replaces: W10253005) |
|
Immediately | $ 559.32 | ||||
| 29 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 32 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 33 | WP2315541 | Air Baffle (Replaces: 2315541) |
|
Immediately | $ 83.80 | ||||
| 34 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 35 | W10405935 | Wire Assy. Unit |
|
$ 154.68 | |||||
| 36 | WPW10139483 | Fan Blade (Replaces: W10139483) |
|
$ 95.07 | |||||
| 39 | W10274306 | Tube, Process |
|
$ 13.71 | |||||
| 40 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| NI | N/P | Refrigerant Charge (4.0 Ozs. (r134a)) |
|
- | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 91.35 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 |
