01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Freezer Door Parts


05 - Refrigerator Door Parts


06 - Unit Parts

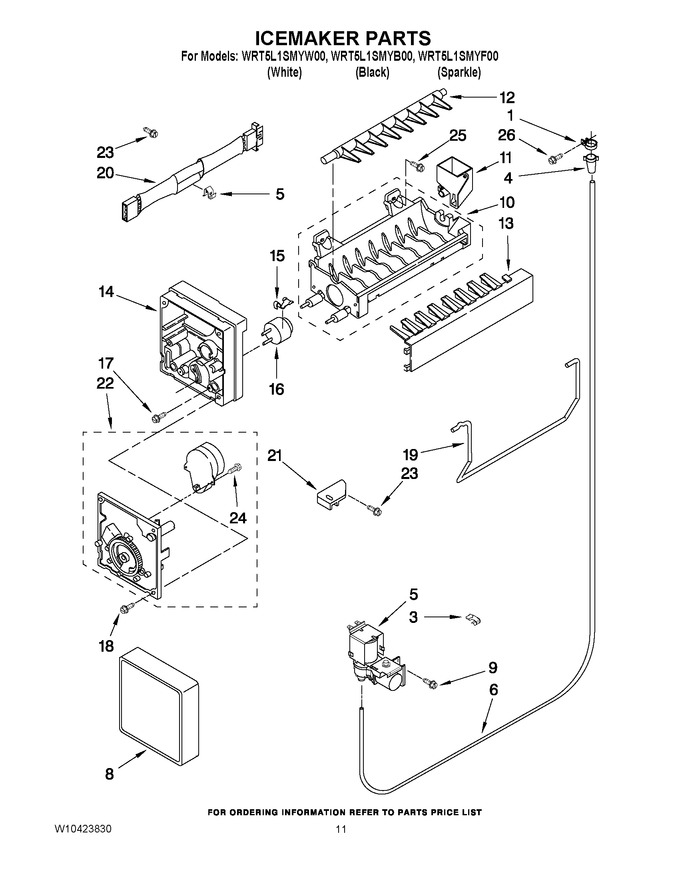

07 - Icemaker Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
3	2210495		Clip, Water Valve		Appelez-nous	-
4	4387491		Insert, Tube   (Replaces: 2181939)				$ 7.84
5	WPW10279909		Valve Solenoid (single)   (Replaces: W10279909)				$ 180.85
6	W10823511		Tube Water   (Replaces: 2181943)			Immediately	$ 32.41
8	W10383537		Cover, Im Module		Appelez-nous	-
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
10	WPW10190929		Mold & Heater Assembly (also Order 542638 Sillicone Grease)   (Replaces: W10122527)				$ 233.15
11	W10122561		Cup, Water Fill				$ 27.77
12	WP627843		Ejector   (Replaces: 627843)				$ 83.60
13	WPW10122563		Ice Stripper   (Replaces: W10122563)				$ 94.69
14	WP2195914		Support   (Replaces: 2194712)				$ 104.57
15	WP2315522		Retainer, Thermostat   (Replaces: 2315522)				$ 11.05
16	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: W10290336)				$ 109.18
17	8533917		Screw				$ 13.37
18	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
19	WP627792		Shut Off Arm   (Replaces: 627792)				$ 84.53
20	WP2187464		Harness, Wiring   (Replaces: 2187464)				$ 124.57
21	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 32.17
22	8201515		Module Assembly (includes Item 24)   (Replaces: W10223929)			Immediately	$ 141.64
23	WP489478		Screw   (Replaces: 489478)				$ 7.75
24	489136		Screw (3-24 X 23/64)				$ 10.29
25	WP488163		Screw   (Replaces: 488208)				$ 7.54
26	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
100	4317943		Icemaker,complete Assembly   (Replaces: W10190952)			Immediately	$ 188.95
