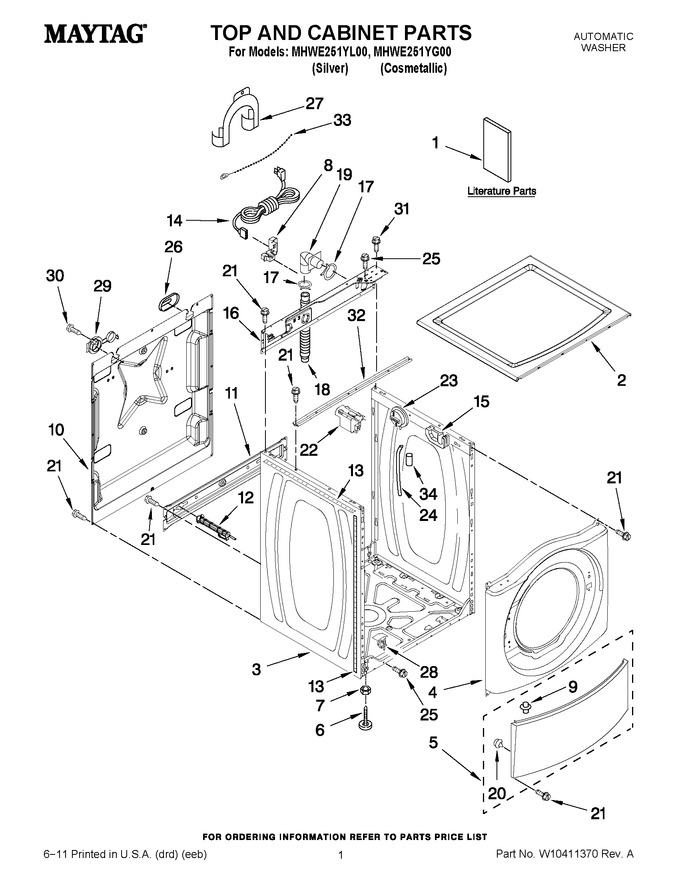

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404647 | Energy Guide |
|
- | |||||
| 1 | W10408696 | Installation Instructions |
|
- | |||||
| 1 | W10394275 | Use & Care Guide |
|
- | |||||
| 1 | W10385295 | Tech Sheet |
|
- | |||||
| 2 | WPW10373969 | Top (cosmetallic) (Replaces: W10373969) |
|
$ 276.28 | |||||
| 2 | W10255320 | Top (silver) |
|
- | |||||
| 3 | W10410322 | Cabinet (cosmetallic) |
|
$ 198.20 | |||||
| 3 | WPW10410323 | Cabinet (silver) (Replaces: W10410323) |
|
$ 308.36 | |||||
| 4 | W10326402 | Panel, Front (silver) |
|
$ 256.75 | |||||
| 4 | W10373967 | Panel, Front (cosmetallic) |
|
$ 287.13 | |||||
| 5 | W10373965 | Toe Panel (cosmetallic) |
|
$ 170.14 | |||||
| 5 | W10254153 | Toe Panel (silver) |
|
$ 168.34 | |||||
| 6 | W10862938 | Foot, Leveling (Replaces: W10245373) |
|
Immediately | $ 12.59 | ||||
| 7 | WP3359452 | Nut, Lock (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 8 | 8182635 | Strain Relief, Power Cord (Replaces: W10110676) |
|
$ 16.72 | |||||
| 9 | 8518891 | Rivet |
|
$ 13.40 | |||||
| 10 | WPW10258341 | Panel, Rear (Replaces: W10258341) |
|
$ 299.00 | |||||
| 11 | W10189657 | Brace, Transport |
|
$ 87.28 | |||||
| 12 | W10763471 | Bolt, Shipping (set Of 4) (Replaces: W10251449) |
|
$ 40.12 | |||||
| 13 | WP8318396A | Seal, Foam-iec (Replaces: 8318396) |
|
$ 37.82 | |||||
| 14 | W11764783 | Cord, Power (Replaces: W10205500) |
|
$ 43.66 | |||||
| 15 | 8540644 | Bracket-suspension Spring |
|
$ 81.64 | |||||
| 16 | W10244560 | Brace, Rear (Replaces: W10299495) |
|
$ 89.62 | |||||
| 17 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 18 | WP8181737 | Hose, Drain (outer) (Replaces: W10281257) |
|
Immediately | $ 62.50 | ||||
| 19 | W11757170 | Connector, Drain Hose (Replaces: W10003260) |
|
Immediately | $ 6.39 | ||||
| 20 | 238614 | Bumper |
|
$ 80.76 | |||||
| 21 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 10.94 | ||||
| 22 | WPW10367632 | Filter, Interference (Replaces: W10339736) |
|
$ 122.22 | |||||
| 23 | W11417623 | Switch, Pressure (Replaces: W10239066) |
|
Immediately | $ 64.77 | ||||
| 24 | W11252474 | Hose, Pressure Switch (Replaces: 8540294) |
|
Immediately | $ 35.23 | ||||
| 25 | 8540479 | Screw, Grounding |
|
$ 8.78 | |||||
| 26 | WP8540268 | Cover, Transport (Replaces: 8540268) |
|
$ 6.95 | |||||
| 27 | WPW10280024 | U-bend, Drain Hose (Replaces: 8540021) |
|
$ 79.53 | |||||
| 28 | WPW10085220 | Microswitch (Replaces: W10085220) |
|
$ 33.25 | |||||
| 29 | W11116978 | Sleeve, Cord Support (Replaces: 8540728) |
|
$ 22.80 | |||||
| 30 | 8182201 | Screw, 3 X 8 Mm (Replaces: 8540727) |
|
$ 13.41 | |||||
| 31 | 8540329 | Screw |
|
- | |||||
| 32 | WP8540721 | Brace, Top (Replaces: 8540721) |
|
$ 49.77 | |||||
| 33 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.90 | |||||
| 34 | W11751592 | Sleeve, Pressure Switch Hose (Replaces: 2161302) |
|
Immediately | $ 20.30 |
