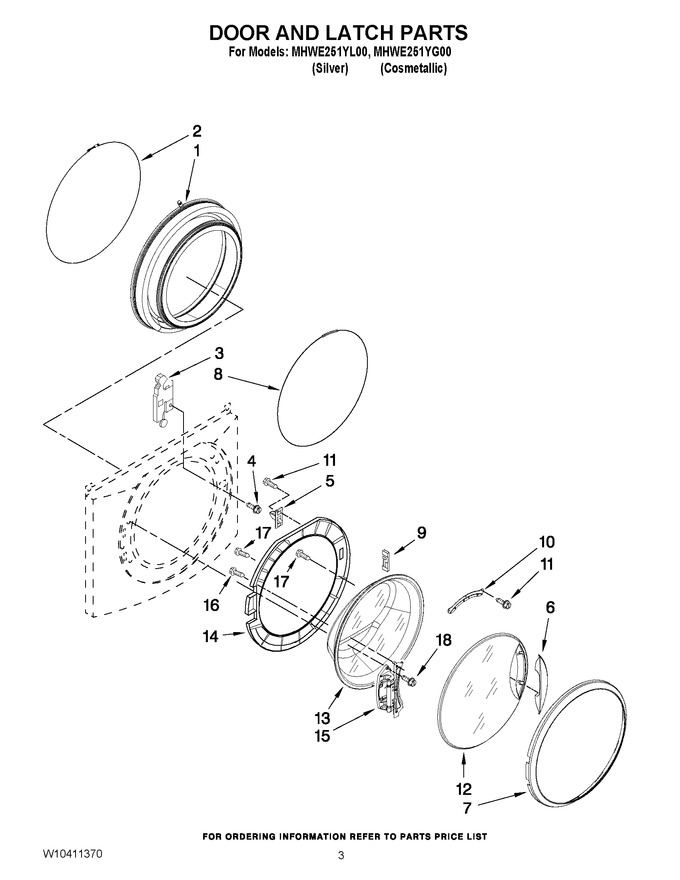

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10381562 | Bellow (Replaces: W10290499) |
|
Immediately | $ 178.80 | ||||
| 2 | WP8540108 | Clamp, Bellow To Tub (Replaces: 8540108) |
|
Immediately | $ 25.64 | ||||
| 3 | WPW10253483 | Lock, Door (Replaces: W10253483) |
|
Immediately | $ 222.33 | ||||
| 4 | WP8540725 | Screw (Replaces: 8540725) |
|
$ 7.68 | |||||
| 5 | WP8540221 | Hook, Door (Replaces: 8540221) |
|
Immediately | $ 11.80 | ||||
| 6 | W10082060 | Handle, Door |
|
$ 223.13 | |||||
| 7 | WPW10079810 | Trim Ring, Outer Door (Replaces: W10079810) |
|
$ 316.94 | |||||
| 8 | W11032829 | Clamp, Bellow To Front Panel (Replaces: W10217563) |
|
Immediately | $ 21.24 | ||||
| 9 | WP8540115 | Clamp, Support (Replaces: 8540115) |
|
$ 6.95 | |||||
| 10 | W11665946 | Clamp, Glass (Replaces: 8540114) |
|
$ 20.86 | |||||
| 11 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.28 | |||||
| 12 | W10354801 | Frame, Door Front Assembly |
|
$ 202.18 | |||||
| 13 | WPW10388315 | Glass, Door (Replaces: W10205548) |
|
$ 328.84 | |||||
| 14 | WPW10138523 | Frame, Door Back Support (Replaces: W10138523) |
|
$ 224.82 | |||||
| 15 | W10118967 | Hinge, Door |
|
$ 144.63 | |||||
| 16 | WP8181660 | Screw (Replaces: 8540284) |
|
$ 6.95 | |||||
| 17 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 11.56 | |||||
| 18 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 10.94 |
