View Diagram in Separate Window
Print Part List

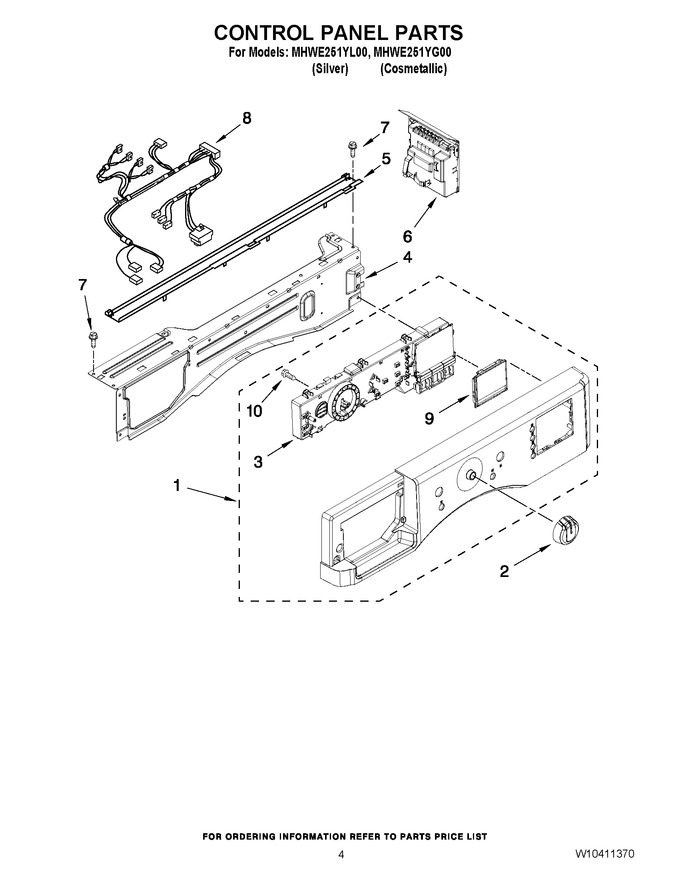

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10360638 | Console (silver) |
|
$ 348.68 | |||||
| 1 | W10372882 | Console (cosmetallic) |
|
$ 341.68 | |||||
| 2 | WPW10251384 | Knob, Control (Replaces: W10251384) |
|
$ 64.58 | |||||
| 3 | W10362704 | User Interface |
|
$ 275.60 | |||||
| 4 | W10846488 | Brace, Top Front (Replaces: W10240776) |
|
$ 92.31 | |||||
| 5 | 8540839 | Channel, Water |
|
$ 27.81 | |||||
| 6 | WPW10459454 | Microcomputer, Machine Control (Replaces: W10373842) |
|
Immediately | $ 313.57 | ||||
| 7 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 11.49 | ||||
| 8 | WPW10323099 | Harness, Main Wiring (Replaces: W10323099) |
|
$ 311.48 | |||||
| 9 | W10215794 | Window, Display |
|
$ 51.90 | |||||
| 10 | W10006580 | Screw, M3-1.12x12 |
|
- |
