Diagram for 01 - Door And Panel Parts
01 - Door And Panel Parts

Diagram for 02 - Control Panel And Latch Parts
02 - Control Panel And Latch Parts

Diagram for 03 - Inner Door Parts
03 - Inner Door Parts

Diagram for 04 - Fill, Drain And Overfill Parts
04 - Fill, Drain And Overfill Parts

Diagram for 05 - Tub And Frame Parts
05 - Tub And Frame Parts

Diagram for 06 - Pump And Motor Parts
06 - Pump And Motor Parts

Diagram for 07 - Upper Wash And Rinse Parts
07 - Upper Wash And Rinse Parts

Diagram for 08 - Heater Parts
08 - Heater Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Lower Rack Parts
10 - Lower Rack Parts

Diagram for 11 - Lower Washarm Parts
11 - Lower Washarm Parts

Diagram for 12 - Optional Parts (not Included)
12 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10350140 Tech Sheet, English Appelez-nous -
1 W10350232 Energy Guide Appelez-nous -
1 W10350359 Guide, Use & Care Appelez-nous -
1 W10350141 Tech Sheet, French Appelez-nous -
1 W10350361 Instructions,installation Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Vapor, Barrier Assy   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 WPW10323568 Panel Front (white)   (Replaces: W10323568) Special Order $ 393.26

4 W10323570 Panel Front (black) Special Order $ 150.41

4 W10323562 Panel Front (stainless) Special Order $ 174.54

5 W10827632 Access Panel (white)   (Replaces: W10369026) In-Stock Immediately $ 163.70

5 W10827631 Access Panel (black)   (Replaces: W10369024) In-Stock Immediately $ 195.64

6 W10831329 Insulation,   (Replaces: W10073540) In-Stock Immediately $ 43.30

7 W10330970 Handle (s.steel) Appelez-nous -
7 W10873052 Handle (white)   (Replaces: W10330968) Special Order $ 171.23

7 W10873050 Handle (black)   (Replaces: W10330967) Special Order $ 177.23

8 WPW10503549 Screw (white)   (Replaces: W10331793) In-Stock Immediately $ 7.77

8 WPW10503548 Screw (black)   (Replaces: W10331789) In-Stock Immediately $ 30.39

9 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

10 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

11 WPW10393264 Name Plate   (Replaces: W10393264) Special Order $ 67.74

12 WPW10350242 Bracket,pnl Cntrl   (Replaces: W10350242) Special Order $ 88.32

13 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

14 W11157086 Stud   (Replaces: W10195726) In-Stock Immediately $ 8.87

15 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

16 W11126003 Insulation, Door   (Replaces: W10315897) In-Stock Immediately $ 65.25


    View Diagram in Separate Window     Print Icon   Print Part List

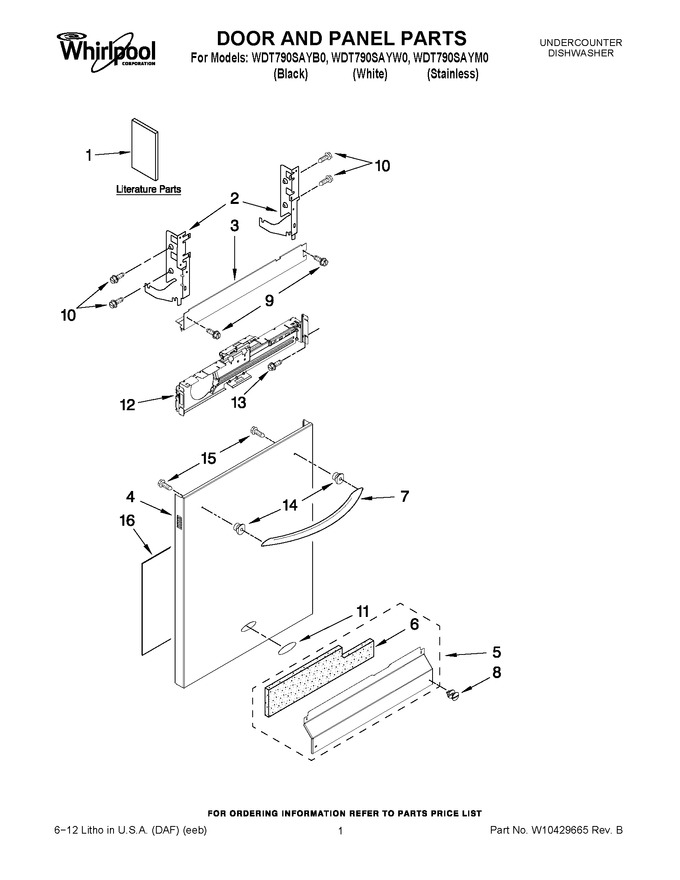

Diagram for WDT790SAYB0
