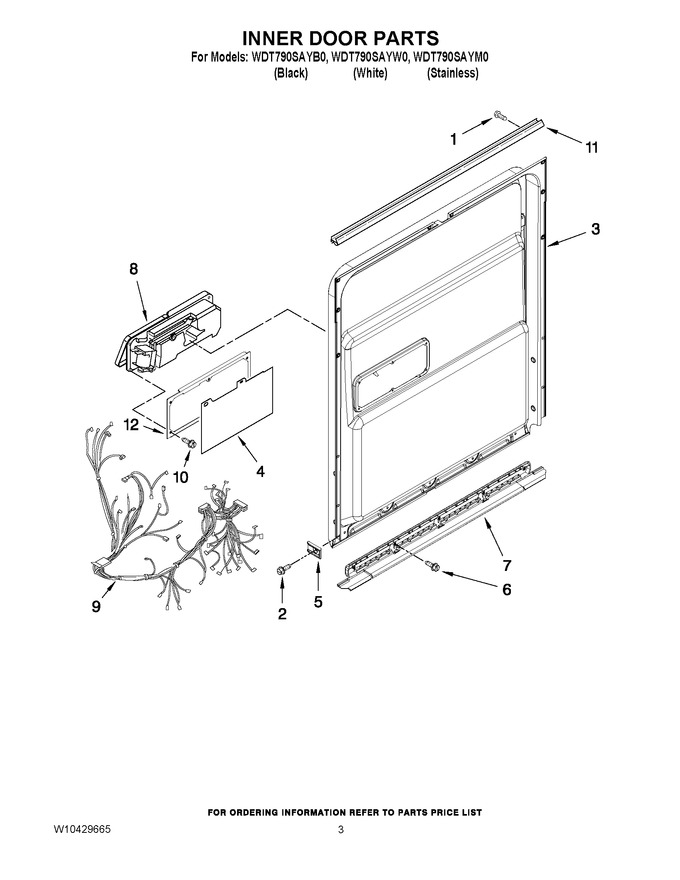

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10177098 | Screw, Door (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 2 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 3 | WPW10380376 | Inner Door Mastic Assembly (Replaces: W10380376) |
|
$ 384.02 | |||||
| 4 | WPW10482094 | Shield, Dispenser (Replaces: W10482094) |
|
Immediately | $ 32.36 | ||||
| 5 | W10195837 | Barrier, Vapor |
|
$ 30.01 | |||||
| 6 | W11631670 | Screw (Replaces: 8281217) |
|
$ 14.72 | |||||
| 7 | WPW10497235 | Seal, Door (bottom) (Replaces: W10195543) |
|
Immediately | $ 10.19 | ||||
| 8 | W11032769 | Dispenser, Assembly (Replaces: W10304410) |
|
Immediately | $ 135.92 | ||||
| 9 | WPW10612062 | Wiring Harness Main (Replaces: W10435305) |
|
$ 262.03 | |||||
| 10 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 11 | WPW10195007 | Seal, Console/door (Replaces: W10195007) |
|
$ 166.86 | |||||
| 12 | WPW10462232 | Bracket Dispenser (Replaces: W10341423) |
|
$ 37.79 |
