View Diagram in Separate Window
Print Part List

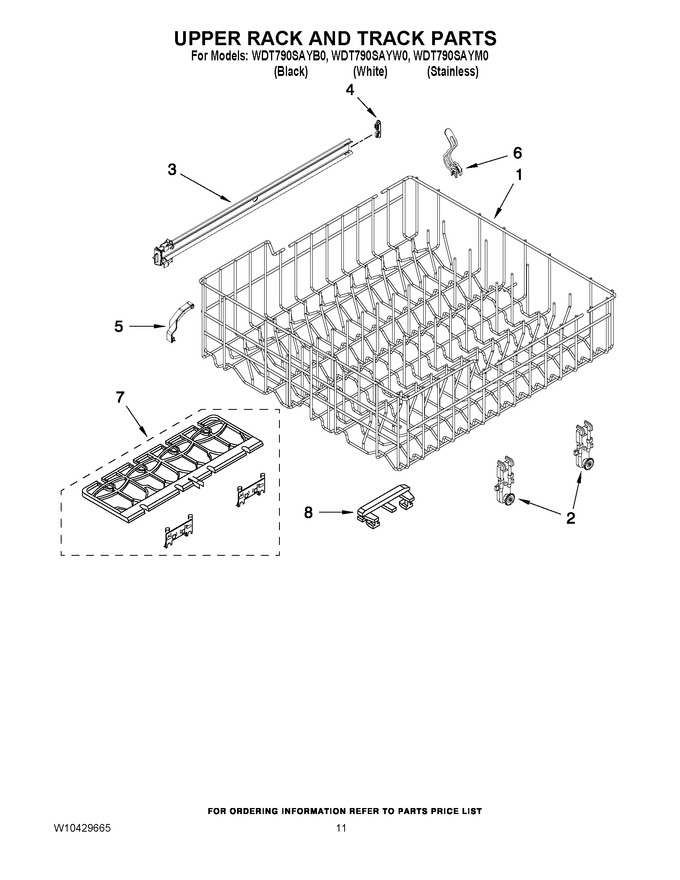

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: W10199801) |
|
Immediately | $ 179.58 | ||||
| 2 | WPW10350401 | Mount, Wheel Stationary (Replaces: W10434691) |
|
Immediately | $ 60.92 | ||||
| 3 | WPW10195623 | Track, Rack (Replaces: W10331879) |
|
Immediately | $ 53.37 | ||||
| 4 | WPW10195622 | Track, Stop Non-removable (Replaces: W10195622) |
|
Immediately | $ 10.81 | ||||
| 5 | WPW10254690 | Clip, Dispenser Guard (Replaces: W10254690) |
|
$ 28.70 | |||||
| 6 | WP8539113 | Clip, No-flip (Replaces: 8539113) |
|
$ 11.43 | |||||
| 7 | WPW10082810 | Cupshelf, Small (Replaces: W10082810) |
|
$ 115.41 | |||||
| 8 | 8539142 | Clip, Cupshelf |
|
$ 58.65 |
