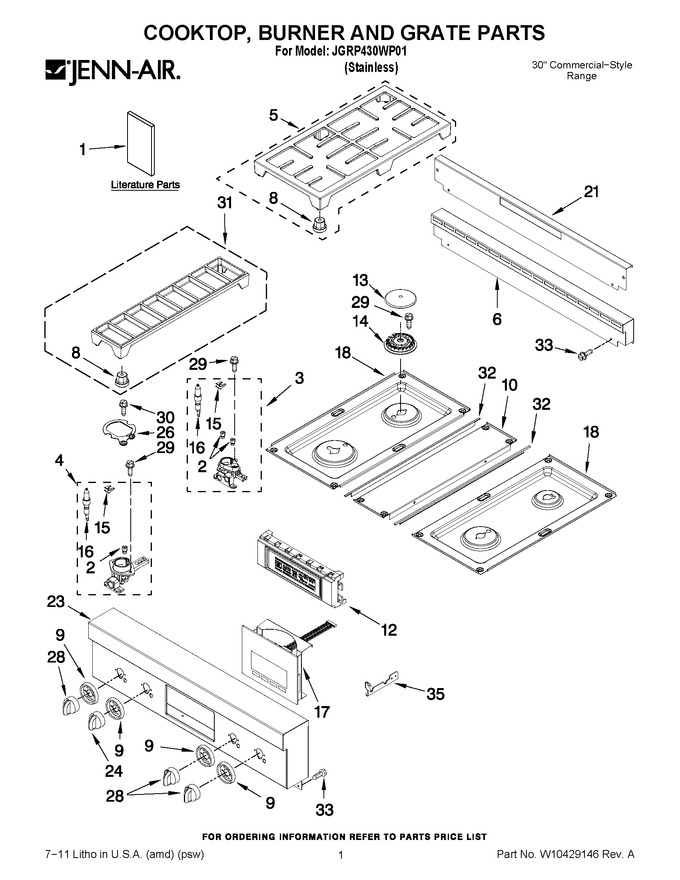

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403308 | Tech Sheet (english) |
|
- | |||||
| 1 | W10399389 | Use & Care Guide |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10403309 | Tech Sheet (french) |
|
- | |||||
| 1 | W10394575 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 2 | W10791075 | Orifice (rr) (Replaces: W10282663) |
|
$ 103.68 | |||||
| 2 | W10340424 | Orifice (lf - High) |
|
$ 93.67 | |||||
| 2 | W10819958 | Orifice (lf - Low) (Replaces: W10256132) |
|
$ 97.77 | |||||
| 2 | W11051480 | Orifice (lr,rf) (Replaces: W10364221) |
|
$ 90.69 | |||||
| 3 | WPW10364555 | Orifice Holder (dual-lf) (Replaces: W10364555) |
|
$ 113.42 | |||||
| 4 | W10282659 | Orifice Holder (rr) |
|
$ 40.50 | |||||
| 4 | WPW10364556 | Orifice Holder (lr,rf) (Replaces: W10364556) |
|
$ 102.39 | |||||
| 5 | W11344501 | Grate, Burner (Replaces: W10276551) |
|
Immediately | $ 218.28 | ||||
| 6 | W10323247 | Trim, Island |
|
$ 395.07 | |||||
| 8 | 9759322 | Rubber, Foot |
|
- | |||||
| 9 | W10276494 | Bezel |
|
$ 80.42 | |||||
| 10 | W10189105 | Filler, Cooktop |
|
- | |||||
| 12 | W10344181 | Assembly, Keypad |
|
- | |||||
| 13 | WPW10256032 | Cap, Burner (lr,rf) (Replaces: W10256032) |
|
Immediately | $ 88.38 | ||||
| 13 | WPW10364463 | Cap, Burner (rr) (Replaces: W10364463) |
|
Immediately | $ 55.85 | ||||
| 13 | WPW10256034 | Cap, Burner (lf) (Replaces: W10256034) |
|
$ 138.19 | |||||
| 14 | WPW10256027 | Base, Burner (lr,rf) (Replaces: W10256027) |
|
Immediately | $ 101.02 | ||||
| 14 | WPW10282515 | Base, Burner (rr) (Replaces: W10282515) |
|
Immediately | $ 149.87 | ||||
| 14 | W11106799 | Base, Burner (lf) (Replaces: W10256029) |
|
Immediately | $ 89.01 | ||||
| 15 | 8286863 | Spring, Electrode (rr) |
|
$ 76.92 | |||||
| 15 | W10256046 | Spring, Electrode (lf,lr,rf) |
|
$ 11.56 | |||||
| 16 | W10833887 | Electrode (lf,lr,rf) (Replaces: W10256047) |
|
Immediately | $ 31.77 | ||||
| 16 | W10854967 | Electrode (rr) (Replaces: 8286725) |
|
Immediately | $ 48.38 | ||||
| 17 | WPW10145531 | Supply, Power (Replaces: W10145531) |
|
Immediately | $ 311.25 | ||||
| 18 | W10352969 | Cooktop (left) |
|
$ 335.75 | |||||
| 18 | W10352968 | Cooktop (right) |
|
$ 337.26 | |||||
| 21 | W10323248 | Insert, Island Trim |
|
$ 268.00 | |||||
| 23 | W10295784 | Panel, Control |
|
- | |||||
| 24 | W10145568 | Knob, Control |
|
$ 52.92 | |||||
| 26 | 8286930 | Gasket, Orifice Holder |
|
$ 95.73 | |||||
| 28 | W10145454 | Knob, Control |
|
$ 46.94 | |||||
| 29 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| 30 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 31 | W11241675 | Grate, Filler (Replaces: W10276495) |
|
$ 194.76 | |||||
| 32 | W10271524 | Trim |
|
$ 212.34 | |||||
| 33 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 35 | W10130760 | Bracket, Moving Console (left) |
|
$ 75.94 | |||||
| 35 | W10130759 | Bracket, Moving Console (right) |
|
$ 75.94 |
