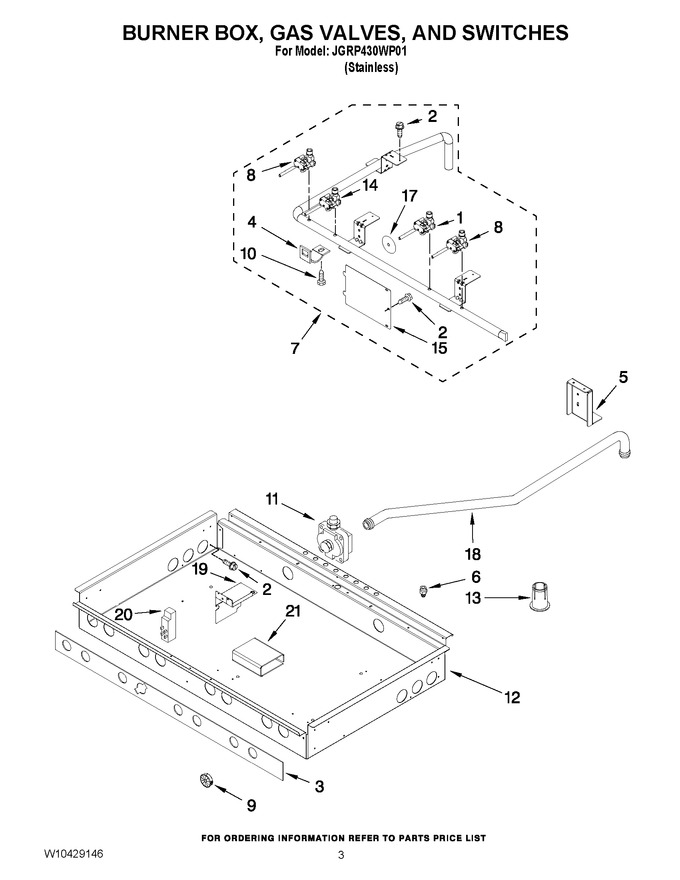

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10371235		Valve, Dual (lf)   (Replaces: W10371235)			Immediately	$ 268.41
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
3	W11706804		Insulation, Burner Box   (Replaces: W10276534)		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10308042		Bracket, Pressure Regulator		Appelez-nous	-
6	4453115		Adapter, 1/2`` Female				$ 126.70
7	W10402605		Manifold				$ 215.36
8	WPW10385582		Valve, Single (lr,rf)   (Replaces: W10385582)			Immediately	$ 340.85
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	W11193822		Regulator,pressure   (Replaces: W10145584)			Immediately	$ 297.57
12	W10371518		Burner Box		Appelez-nous	-
13	WW10340850		Reducer, Venturi Rapid		Appelez-nous	-
14	WPW10385583		Valve, Aux (rr)   (Replaces: W10385583)			Immediately	$ 332.10
15	W10115843		Cover, Ignition		Appelez-nous	-
17	W10423373		Seal, Switch Cover		Appelez-nous	-
18	W10348600		Tube, Pressure Regulator				$ 207.23
19	W10367054		Bracket, Spark Module		Appelez-nous	-
20	WPW10475147		Spark Module   (Replaces: 7431P038-60)			Immediately	$ 238.24
21	8287102		Insulation, Spark Module		Appelez-nous	-
NI	WPW10368165		Tubing, Gas (lr)   (Replaces: W10368165)				$ 74.12
NI	W10368167		Tubing, Gas (lf-right)				$ 174.72
NI	W10368166		Tubing, Gas (lf-left)				$ 53.99
NI	W10276501		Tubing, Gas (rr)		Appelez-nous	-
NI	W10368335		Tubing, Gas (rf)			Immediately	$ 172.59

    View Diagram in Separate Window       Print Part List
