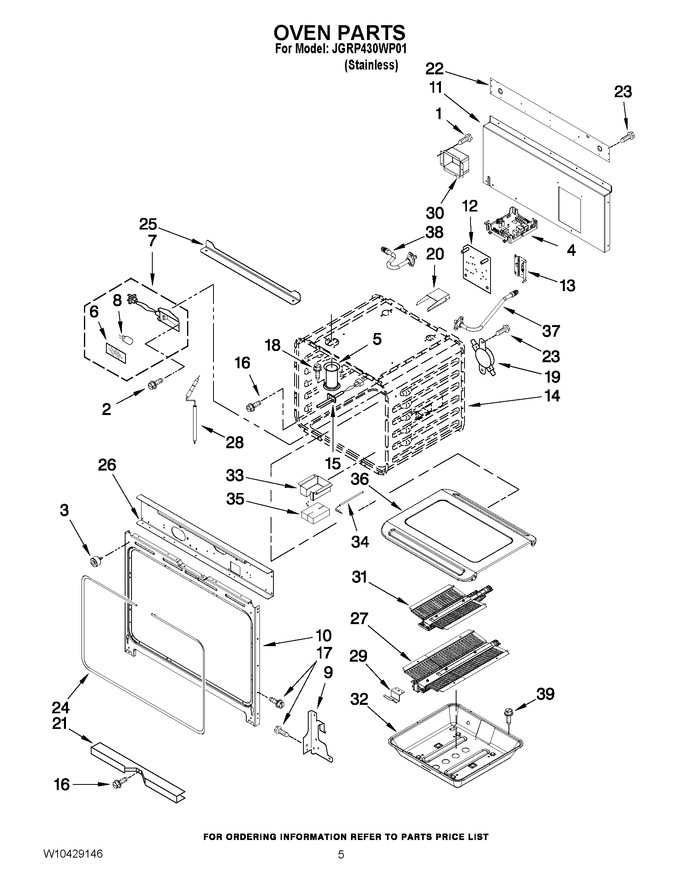

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 2 | 4449748 | Screw |
|
$ 14.23 | |||||
| 3 | W10105790 | Assembly, Bumper |
|
$ 7.41 | |||||
| 4 | W10888661 | Control (Replaces: W10335645) |
|
Immediately | $ 516.62 | ||||
| 5 | W10145743 | Tube, Vent |
|
- | |||||
| 6 | W10169756 | Lens, Light |
|
$ 42.19 | |||||
| 7 | WPW10307114 | Oven Light Assy (Replaces: W10307114) |
|
Immediately | $ 116.01 | ||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 47.38 | ||||
| 9 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 9 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 10 | WPW10115831 | Frame, Front (Replaces: W10115831) |
|
$ 351.89 | |||||
| 11 | W10145392 | Panel, Back Bottom |
|
- | |||||
| 12 | WPW10331686 | Spark Module (Replaces: 9758080) |
|
Immediately | $ 393.86 | ||||
| 13 | W10145362 | Bracket, Control |
|
$ 81.33 | |||||
| 14 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 15 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 95.83 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 19 | WP4450249 | Thermostat (Replaces: 4450249) |
|
Immediately | $ 211.50 | ||||
| 20 | W10235557 | Drawer Assembly |
|
- | |||||
| 21 | W11368870 | Retainer, Gasket (Replaces: W10157511) |
|
$ 24.91 | |||||
| 22 | W10321813 | Panel, Back Top |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 24 | W11675844 | Gasket, Oven (Replaces: W10160890) |
|
Immediately | $ 74.56 | ||||
| 25 | W10317437 | Broil, Standoff Bracket |
|
- | |||||
| 26 | W10145377 | Support, Channel |
|
- | |||||
| 27 | W11661180 | Broil Burner (Replaces: W10311335) |
|
$ 175.93 | |||||
| 28 | W11446096 | Electrode, Broil (Replaces: W10332287) |
|
Immediately | $ 84.02 | ||||
| 29 | W10308040 | Bracket, Bake Burner |
|
- | |||||
| 30 | W10308051 | Box, Broil |
|
- | |||||
| 31 | W11643161 | Bake Burner (Replaces: W10311409) |
|
Immediately | $ 185.14 | ||||
| 32 | WPW10145744 | Support, Bake Pan (Replaces: W10145744) |
|
$ 214.15 | |||||
| 33 | W10310985 | Cover, Broil |
|
- | |||||
| 34 | W11448312 | Electrode, Bake (Replaces: W10332290) |
|
Immediately | $ 72.90 | ||||
| 35 | W11688851 | Insulation, Broil Cover (Replaces: W10311009) |
|
- | |||||
| 36 | WPW10272546 | Bottom, Oven Gas (Replaces: W10272546) |
|
Immediately | $ 222.79 | ||||
| 37 | W10145716 | Tube, Broil |
|
$ 191.98 | |||||
| 38 | W10145715 | Tube, Bake |
|
$ 189.19 | |||||
| 39 | W10272525 | Screw |
|
$ 10.08 | |||||
| NI | W11684890 | Insulation, Bottom (Replaces: W10299354) |
|
- | |||||
| NI | W11661177 | Insulation, Wrap (Replaces: W10282810) |
|
$ 162.50 | |||||
| NI | W11688580 | Insulation, Back (Replaces: W10299350) |
|
- |
