Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left Hand)) Special Order $ 92.84

1 W10319111 Support, Backguard (black (right Hand)) Special Order $ 43.80

1 W10319110 Support, Backguard (white (left Hand)) Special Order $ 95.95

1 W10319112 Support, Backguard (white (right Hand)) Special Order $ 93.79

2 W11233072 Screw   (Replaces: 7101P338-60) In-Stock Immediately $ 14.72

3 W10201507 Console (white) Special Order $ 115.53

3 W10201510 Console (stainless) Special Order $ 116.83

3 W10201509 Console (black) Special Order $ 114.95

4 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 18.60

5 W10365409 Electronic, Control Mrc2 Appelez-nous -
6 WPW10321798 Assembly, Membrane (black)   (Replaces: W10321798) Special Order $ 307.20

6 W10321800 Assembly, Membrane (white) Appelez-nous -
7 W10278697 Shield, Vent In-Stock Immediately $ 183.33

8 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 7.55

9 W10296773 Cover, Backguard Special Order $ 194.52

10 W11684874 Insulation, Wire Cover   (Replaces: W10309232) Special Order $ 35.56


    View Diagram in Separate Window     Print Icon   Print Part List

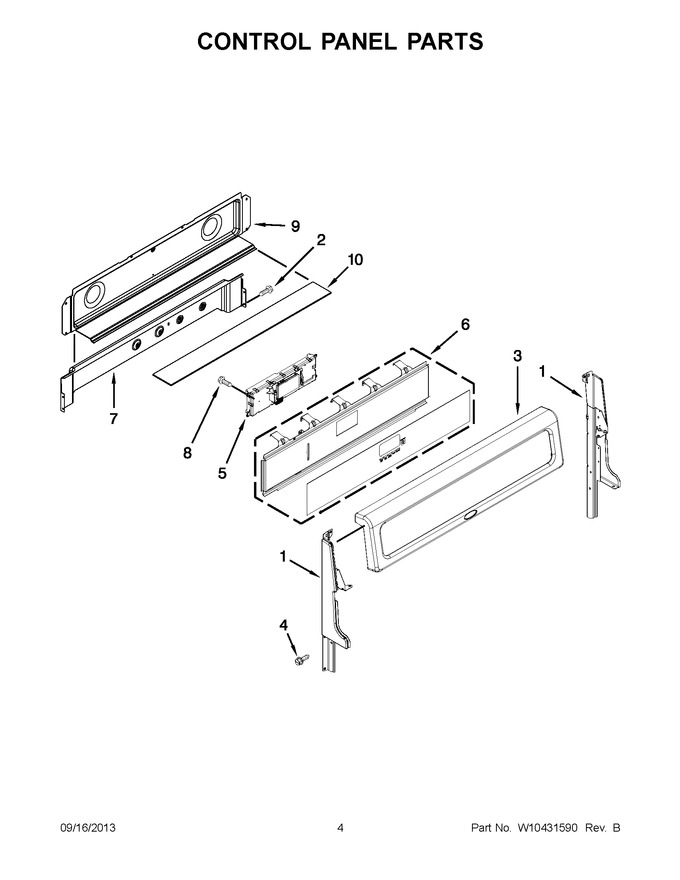

Diagram for GGG388LXB02
