Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10206315 Lining, Door Appelez-nous -
2 W11132120 Glass, Inner   (Replaces: W10272707) Special Order $ 179.33

3 WPW10272708 Frame, Glass   (Replaces: W10272708) Special Order $ 171.93

4 WPW10292297 Screw   (Replaces: W10292297) In-Stock Immediately $ 7.55

5 W10340589 Retainer, Insulation Special Order $ 105.40

6 WPW10321271 Insulation, Door   (Replaces: W10321271) Special Order $ 99.18

7 W10647259 Receiver, Hinge   (Replaces: W10289077) In-Stock Immediately $ 9.32

8 W10323327 Assembly, Glass Door (stainless) Appelez-nous -
8 W10322711 Assembly, Glass Door (white) Appelez-nous -
8 W10322715 Assembly, Glass Door (black) Appelez-nous -
9 W10335429 Hinge, Door (right) Special Order $ 35.72

9 W10335430 Hinge, Door (left) Special Order $ 36.18

10 WPW10144883 Handle, Door (stainless)   (Replaces: W10144883) Special Order $ 252.66

10 WPW10323589 Handle, Door (black)   (Replaces: W10323589) In-Stock Immediately $ 238.78

10 W10817434 Handle, Door (white)   (Replaces: W10323588) In-Stock Immediately $ 234.82


    View Diagram in Separate Window     Print Icon   Print Part List

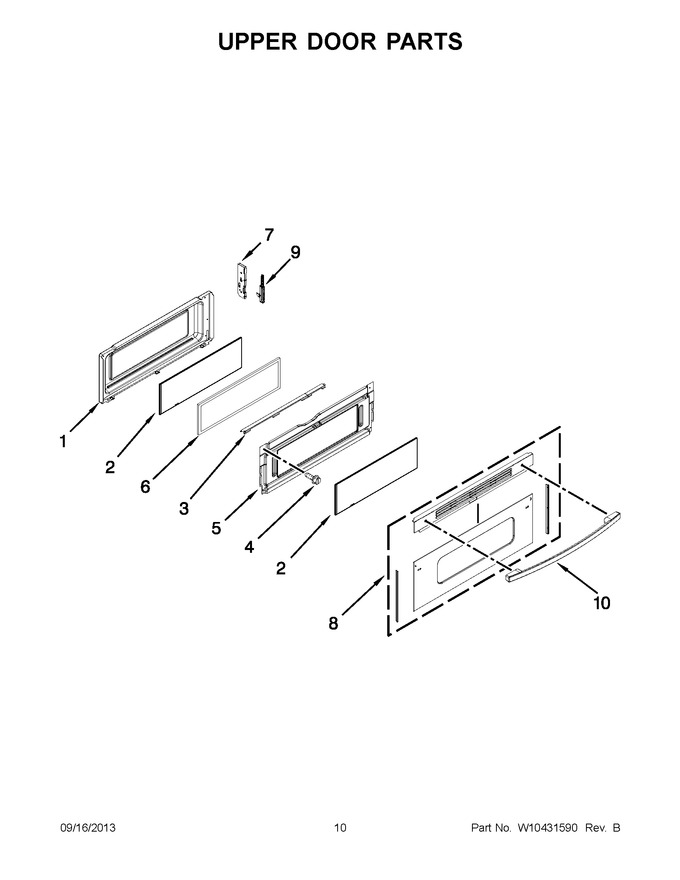

Diagram for GGG388LXB02
