SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)

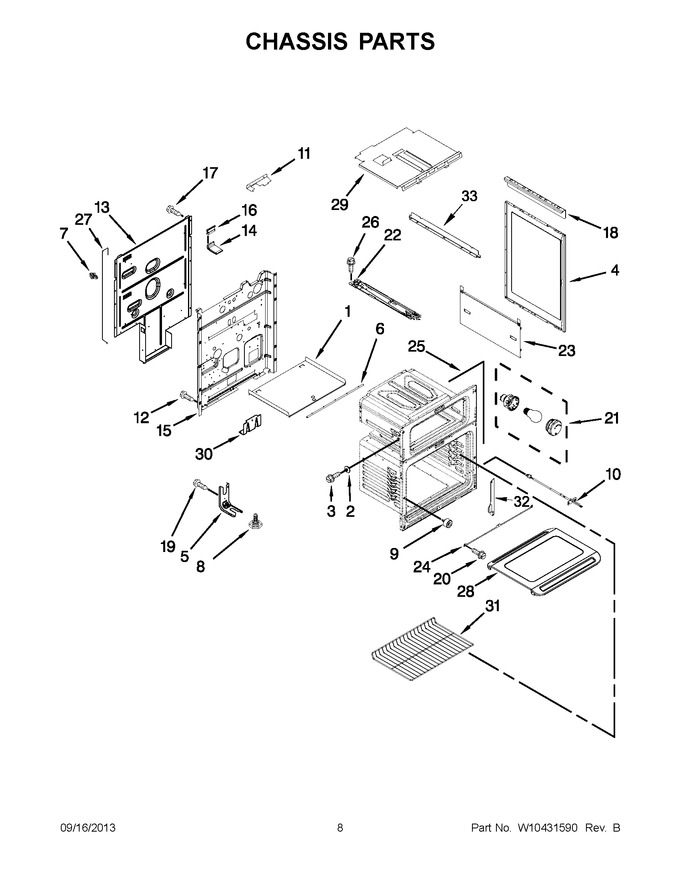

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319038		Shield, Gemini				$ 150.59
2	WPW10237689		Spacer, Side Panel   (Replaces: W10237689)				$ 83.82
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 8.06
4	WPW10330376		Panel, Side (white)   (Replaces: W10330376)				$ 217.83
4	W10330375		Panel, Side (black)				$ 82.13
5	WP3801F656-51		Bracket, Anti Tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
6	W10319000		Gasket, Gemini Oven Shield		Appelez-nous	-
7	W10284945		Guide, Rod		Appelez-nous	-
8	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 29.52
9	W10105790		Bumper & Screw				$ 7.41
10	WP7430P044-60		Sensor, Oven   (Replaces: 7430P044-60)			Immediately	$ 175.94
11	W10268558		Cover, Lower Wire		Appelez-nous	-
12	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.85
13	WPW10261387		Cover, Main Wire   (Replaces: W10261387)				$ 208.95
14	W11243157		Assembly, Flue (upper)   (Replaces: W10311326)				$ 370.35
14	W10272519		Assembly, Flue (lower)		Appelez-nous	-
15	WPW10260580		Back, Main   (Replaces: W10260580)				$ 155.95
16	W10321445		Assembly, Outlet Flue (lower)		Appelez-nous	-
16	W10321446		Assembly, Outlet Flue (upper)		Appelez-nous	-
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	W10319087		Bracket, U Channel				$ 83.10
19	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
20	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
21	W11594027		Assembly, Light   (Replaces: W10512757)			Immediately	$ 87.01
22	W10883049		Lock, Integrated Light   (Replaces: W10471348)			Immediately	$ 306.46
23	WPW10253471		Shield, Side Insulation   (Replaces: W10253471)				$ 159.64
24	W10299886		Trim, Kickplate				$ 88.08
25	WPW10269069		Gasket, Oven Door (lower)   (Replaces: W10269069)			Immediately	$ 190.80
25	W10318928		Gasket, Oven Door (upper)				$ 177.37
26	74003975		Screw   (Replaces: 7101P375-60)				$ 14.03
27	W10284949		Rod, Shutoff		Appelez-nous	-
28	WPW10272546		Bottom, Oven   (Replaces: W10272546)			Immediately	$ 222.79
29	W10324643		Support, Insulation		Appelez-nous	-
30	W10260703		Support, Lower Oven		Appelez-nous	-
31	WPW10179152		Rack, Oven   (Replaces: W10179152)			Immediately	$ 119.61
32	W10410463		Cover, Hinge (left)				$ 98.93
32	W10410461		Cover, Hinge (right)				$ 94.86
33	W10357697		Bracket, Side Panel				$ 24.34
NI	W11684919		Insulation, Floor   (Replaces: W10344586)				$ 122.44
NI	W11684769		Insulation, Wrapper   (Replaces: W10318910)				$ 126.07
NI	W11688777		Insulation, Back   (Replaces: W10318918)				$ 75.73
NI	W11688385		Insulation, Wrapper   (Replaces: W10318911)				$ 127.50
NI	W11685611		Insulation, Back   (Replaces: W10204081)				$ 123.70

    View Diagram in Separate Window       Print Part List
