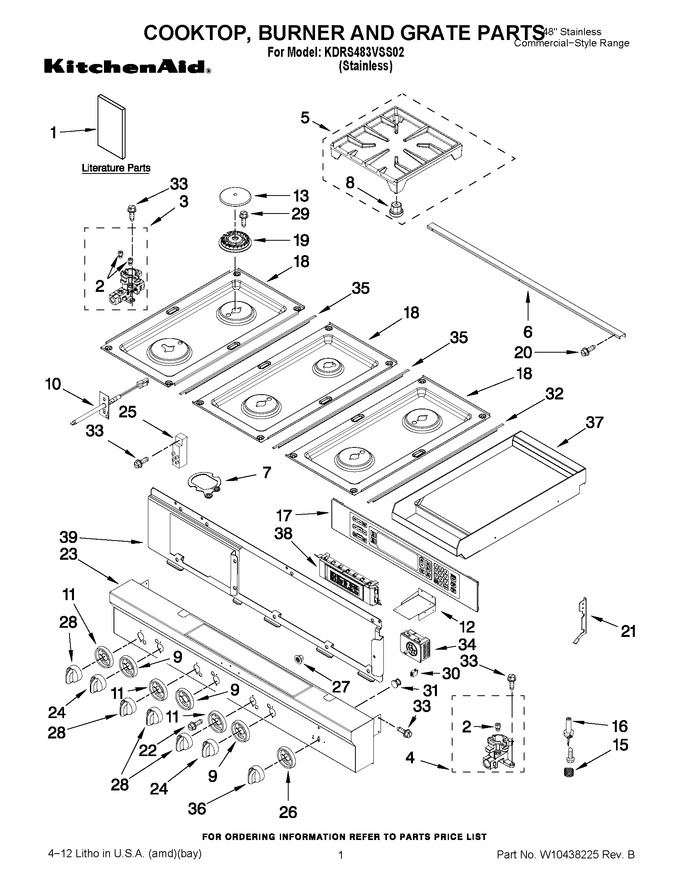

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - 30`` Oven Parts


04 - 18`` Oven Parts


05 - 48`` Chassis Parts


06 - Top Venting Parts


07 - 30`` Oven Door Parts


08 - 18`` Oven Door Parts


09 - 30`` Internal Oven Parts


10 - 18`` Internal Oven Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10394571		Installation Instructions		Appelez-nous	-
1	W10403298		Tech Sheet (french)		Appelez-nous	-
1	W10399386		Use & Care Guide		Appelez-nous	-
1	9762761		Safer Cooking Tips (english		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10403297		Tech Sheet (english)		Appelez-nous	-
2	W11051480		Orifice (lr,cf,rr)   (Replaces: W10364221)				$ 90.69
2	WPW10256128		Orifice (cr)   (Replaces: W10256128)				$ 100.45
2	W10340424		Orifice (lf,rf - High)				$ 93.67
2	W10819958		Orifice (lf,rf - Low)   (Replaces: W10256132)				$ 97.77
3	WPW10364555		Orifice Holder (dual - Lf,rf)   (Replaces: W10364555)				$ 113.42
4	WPW10364556		Orifice Holder (lr,cf,rr)   (Replaces: W10364556)				$ 102.39
4	W10282659		Orifice Holder (cr)				$ 40.50
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 201.41
6	W10269216		Trim, Island		Appelez-nous	-
7	8286930		Gasket, Orifice Holder (aux)				$ 95.73
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 15.47
9	W10261510		Bezel, Front				$ 55.11
10	W10319835		Sensor				$ 239.28
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10367052		Bracket, Spark Module		Appelez-nous	-
13	WPW10256034		Cap, Burner (lf,rf)   (Replaces: W10256034)				$ 138.19
13	WPW10256032		Cap, Burner (lr,cf,rr)   (Replaces: W10256032)			Immediately	$ 88.38
13	WPW10364463		Cap, Burner (cr)   (Replaces: W10364463)			Immediately	$ 55.85
15	8286863		Spring, Electrode (cr)				$ 76.92
15	W10256046		Spring, Electrode (rf,lf,rr,cf,lr)				$ 11.56
16	W10833887		Electrode (lf,rf,lr,cf,rr)   (Replaces: W10256047)			Immediately	$ 31.77
16	WPW10145991		Electrode (cr)   (Replaces: W10145991)			Immediately	$ 84.47
17	WPW10116117		Keypad, Urso Double   (Replaces: W10116117)				$ 311.48
18	W10352966		Cooktop (center)				$ 320.43
18	W10352963		Cooktop (right)				$ 317.55
18	W10352969		Cooktop (left)				$ 335.75
19	WPW10282515		Burner Head (cr)   (Replaces: W10282515)			Immediately	$ 149.87
19	W11106799		Burner Head (lf,rf)   (Replaces: W10256029)			Immediately	$ 89.01
19	WPW10256027		Burner Head (lr,cf,rr)   (Replaces: W10256027)			Immediately	$ 101.02
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	W10130759		Bracket, Moving Console (right)				$ 75.94
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
23	W10284667		Assembly, Console		Appelez-nous	-
24	W11244176		Knob, Control (dual - Lf,rf)   (Replaces: W10250389)				$ 78.37
25	W11601369		Module, Spark   (Replaces: W10116108)			Immediately	$ 67.35
26	W10261515		Bezel, Griddle		Appelez-nous	-
27	7103P166-60		Nut, Hex				$ 18.56
28	W11177673		Knob, Control   (Replaces: W10250391)				$ 90.55
29	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
30	W10116151		Light, Indicator Housing				$ 79.16
31	W10116115		Lens, Indicator Light				$ 7.86
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
34	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
35	W10271524		Trim, T-strip				$ 212.34
36	W10250390		Knob, Griddle				$ 36.98
37	W10625221		Module, Griddle   (Replaces: W10276498)				$ 1,457.32
38	WPW10298120		User Interface   (Replaces: W10298120)				$ 458.85
39	W10250476		Bracket, Main User Interface		Appelez-nous	-
