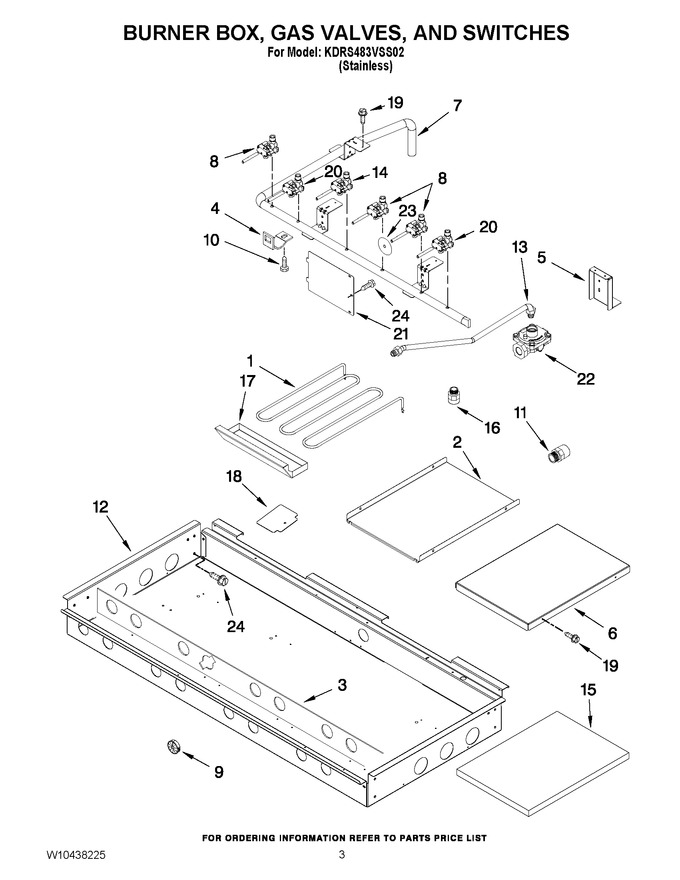

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10138296 | Element, Griddle |
|
- | |||||
| 2 | W10145620 | Tray-element, Griddle |
|
- | |||||
| 3 | W11688741 | Insulation, Burner Box (Replaces: W10160202) |
|
- | |||||
| 4 | W10189107 | Bracket, Valve |
|
- | |||||
| 5 | W10115850 | Bracket, Pressure Regulator |
|
- | |||||
| 6 | W10246074 | Tray-insulation, Griddle |
|
- | |||||
| 7 | W10115896 | Manifold |
|
$ 104.48 | |||||
| 8 | WPW10385582 | Valve, Gas (lr,cf,rr) (Replaces: W10385582) |
|
Immediately | $ 340.85 | ||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 8.00 | |||||
| 10 | W10189140 | Screw, Valve Mtg |
|
$ 6.82 | |||||
| 11 | 4453116 | Adapter, 1/2`` Male |
|
$ 179.43 | |||||
| 12 | W10371517 | Burner Box |
|
- | |||||
| 13 | W10269191 | Tube, Pressure Regulator |
|
$ 217.69 | |||||
| 14 | WPW10385583 | Valve, Gas (cr) (Replaces: W10385583) |
|
Immediately | $ 332.10 | ||||
| 15 | W11684995 | Insulation, Griddle (Replaces: W10145621) |
|
- | |||||
| 16 | 4453115 | Adapter, 1/2`` Female |
|
$ 126.70 | |||||
| 17 | W10276497 | Drip Tray, Griddle |
|
$ 404.03 | |||||
| 18 | W10287036 | Cover, Housing |
|
- | |||||
| 19 | 4450800 | Screw |
|
$ 13.47 | |||||
| 20 | WPW10371235 | Valve, Gas (lf,rf) (Replaces: W10371235) |
|
Immediately | $ 268.41 | ||||
| 21 | W10115843 | Cover, Ignition |
|
- | |||||
| 22 | W10293267 | Regulator, Pressure |
|
$ 313.91 | |||||
| 23 | W10423373 | Seal, Switch Cover |
|
- | |||||
| 24 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| NI | W10280797 | Tubing, Gas (left Rear) |
|
- | |||||
| NI | W10353141 | Tubing, Gas (front Right) |
|
$ 175.16 | |||||
| NI | WPW10353133 | Tubing, Gas (right Rear) (Replaces: W10353133) |
|
$ 174.89 | |||||
| NI | W10353152 | Tubing, Gas (front Center) |
|
$ 78.93 | |||||
| NI | W10353154 | Tubing, Gas (front Left) |
|
Immediately | $ 172.78 |
