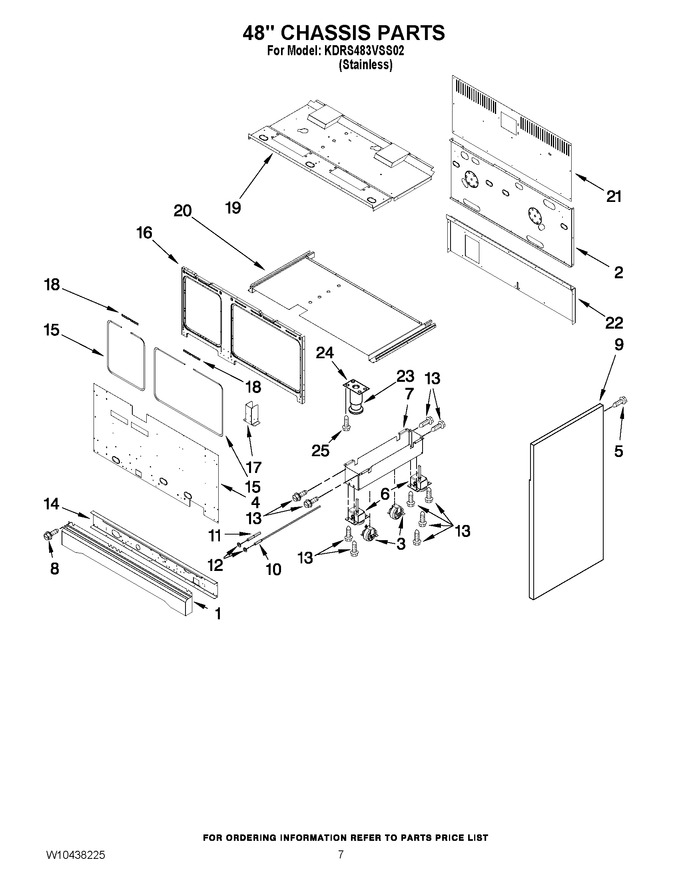

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10225969		Kickplate   (Replaces: W10225969)				$ 310.40
2	W10235546		Back, Chassis		Appelez-nous	-
3	WPW10138054		Roller, Assembly   (Replaces: W10138054)				$ 45.34
4	W10269195		Duct, Bottom		Appelez-nous	-
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
6	W10859931		Foot   (Replaces: 9760860)				$ 119.11
7	W10249333		Base, Leveling Leg				$ 292.22
8	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
9	W10250466		Panel, Side (right)				$ 513.24
9	W11321067		Panel, Side (left)   (Replaces: W10250467)				$ 439.37
10	W10115869		Shaft, Long			Immediately	$ 109.36
11	W10115793		Shaft, Short				$ 75.83
12	489504		E-ring				$ 7.40
13	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
14	W10269192		Support, Channel		Appelez-nous	-
15	W10116039		Gasket, (18``)		Appelez-nous	-
15	W11675844		Gasket, (30``)   (Replaces: W10160890)			Immediately	$ 74.56
15	W10160892		Gasket, (front Frame)		Appelez-nous	-
16	W10160895		Frame, Front		Appelez-nous	-
17	W10115819		Column, Central		Appelez-nous	-
18	W11368870		Retainer, Ss Gasket (30``)   (Replaces: W10157511)				$ 24.91
18	W10216520		Retainer, Ss Gasket (18``)		Appelez-nous	-
19	W10267895		Chassis, Top		Appelez-nous	-
20	W10235535		Chassis, Bottom		Appelez-nous	-
21	W10269209		Panel, Back Top		Appelez-nous	-
22	W10145397		Panel, Back Bottom		Appelez-nous	-
23	WP9759117		Foot, Dual Fuel   (Replaces: 9759117)				$ 148.66
24	WP9759118		Plate, Foot   (Replaces: 9759118)				$ 154.94
25	3400518		Screw				$ 13.63
