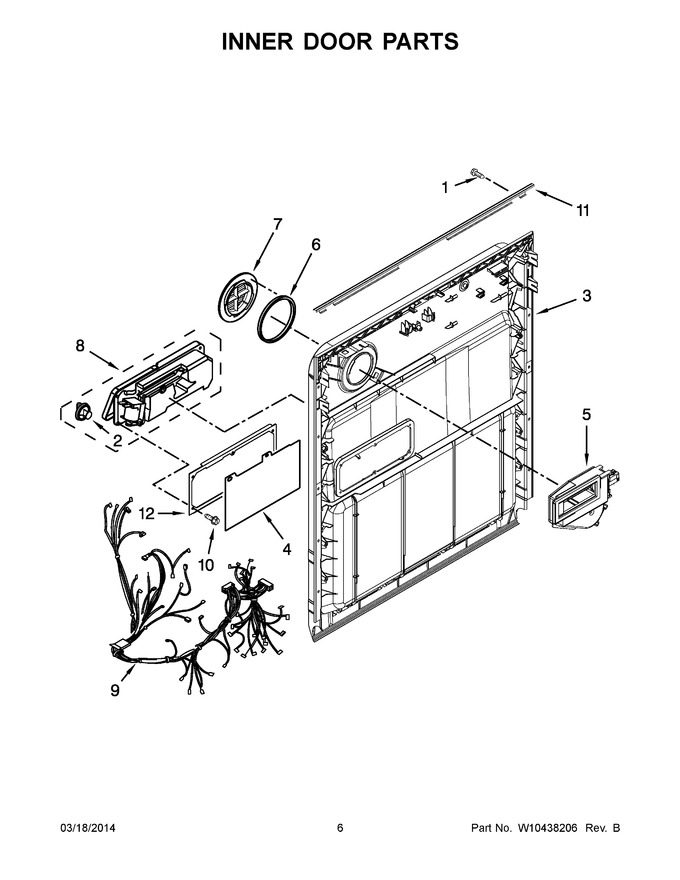

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw (Replaces: W10348413) |
|
Immediately | $ 8.41 | ||||
| 2 | WP8558307 | Knob, Rinse Aid (Replaces: 8558307) |
|
Immediately | $ 25.80 | ||||
| 3 | W10274924 | Inner Door Assembly (also Order Item 6) |
|
$ 102.52 | |||||
| 4 | W10385977 | Cover, Dispenser |
|
$ 30.61 | |||||
| 5 | WPW10428211 | Vent Assembly (also Order Item 6) (Replaces: W10428211) |
|
$ 177.93 | |||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | WPW10274926 | Deflector, Vent (also Order Item 6) (Replaces: W10274926) |
|
$ 44.31 | |||||
| 8 | WPW10195175 | Dispenser Assembly (Replaces: W10195172) |
|
Immediately | $ 124.51 | ||||
| 9 | WPW10496088 | Wiring Harness Main (Replaces: W10358240) |
|
$ 253.75 | |||||
| 10 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 11 | W10837566 | Seal, Console/door (Replaces: W10274923) |
|
Immediately | $ 86.84 | ||||
| 12 | WPW10462232 | Bracket Dispenser (Replaces: W10341423) |
|
$ 37.79 |
