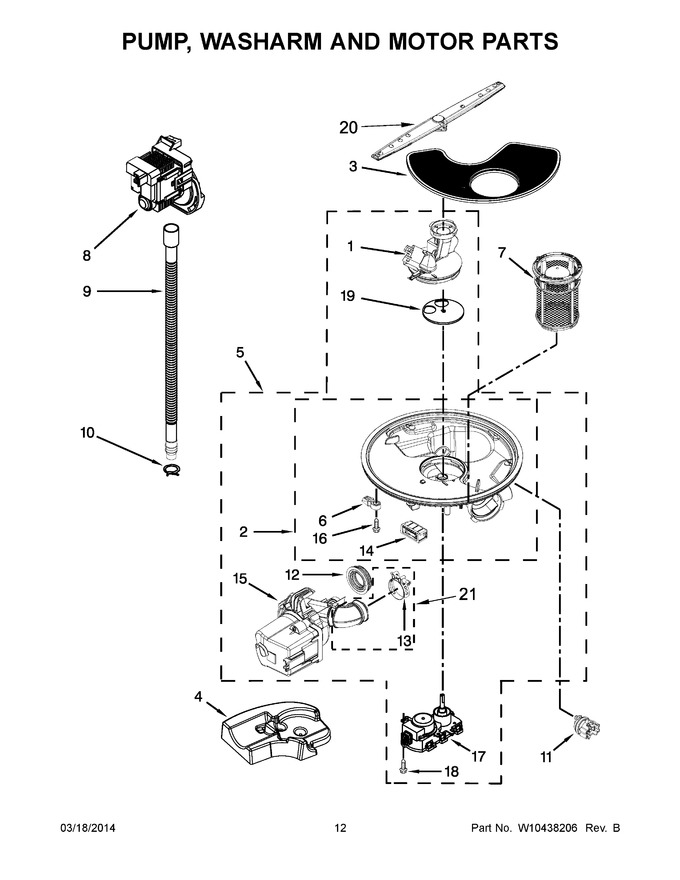

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10463895 | Cover, Outlet (Replaces: W10315329) |
|
$ 29.40 | |||||
| 2 | WPW10195643 | Sump With Seal (also Order Items 12 & 21) (Replaces: W10195643) |
|
$ 293.16 | |||||
| 3 | WPW10354786 | Screen (Replaces: W10354786) |
|
$ 52.84 | |||||
| 4 | W10350335 | Damper, Sump Assembly (Replaces: W10300776) |
|
$ 94.30 | |||||
| 5 | WPW10605058 | Sump & Motor Assembly (Replaces: W10300748) |
|
Immediately | $ 399.68 | ||||
| 6 | WPW10372113 | Tab, Sump (Replaces: 8579289) |
|
Immediately | $ 29.36 | ||||
| 7 | W10872845 | Filter Cup, Assembly (Replaces: W10300746) |
|
Immediately | $ 55.08 | ||||
| 8 | WPW10348269 | Pump, Drain (Replaces: 8558995) |
|
Immediately | $ 97.46 | ||||
| 9 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 29.04 | ||||
| 10 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 8.81 | ||||
| 11 | WPW10705575 | Indicator, Optical Wash (Replaces: W10134017) |
|
Immediately | $ 43.81 | ||||
| 12 | WPW10538166 | Grommet (Replaces: W10195068) |
|
Immediately | $ 44.37 | ||||
| 13 | W10488094 | Clamp, Hose (Replaces: W10169166) |
|
$ 89.32 | |||||
| 14 | W11243394 | Motor, Isolator (Replaces: W10195086) |
|
$ 14.57 | |||||
| 15 | W11032770 | Motor (also Order Items 12 & 21) (Replaces: W10349483) |
|
Immediately | $ 312.55 | ||||
| 16 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 8.06 | |||||
| 17 | W10537869 | Motor, Diverter Valve (Replaces: W10195076) |
|
Immediately | $ 114.36 | ||||
| 18 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 19 | W10195074 | Disc-valve Diverter |
|
$ 23.68 | |||||
| 20 | WPW10340527 | Sprayarm, Lower (Replaces: W10340527) |
|
Immediately | $ 61.76 | ||||
| 21 | W10445975 | Hose Assembly (includes 2 Clamps) |
|
Immediately | $ 85.38 |
